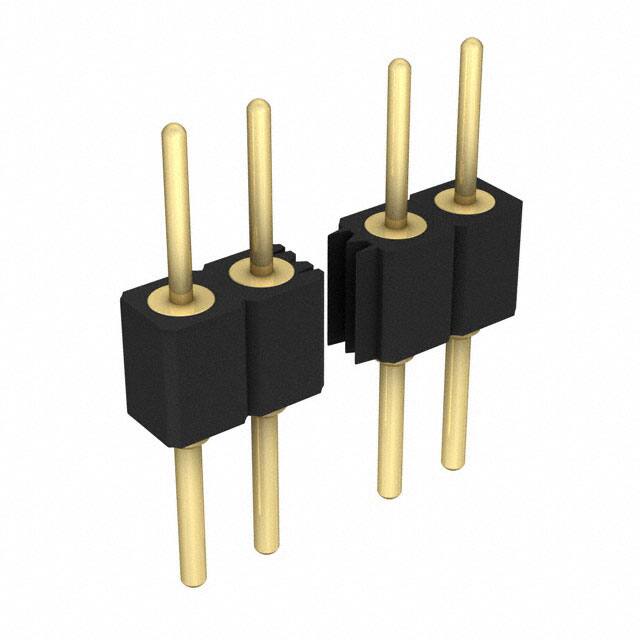

800-10-006-10-002101

Teknik Özellikler

Contact Lengthmating

0.141 3.60mm

Seri

800

JESD-609 Kodu

e4

Insulation Height

0.116 2.95mm

Iec Conformance

NO

Number Of Conductors

ONE

Mil Conformance

NO

Montaj Tipi

Through Hole

Gender

Male

Çalışma Sıcaklığı

-55°C~125°C

Pozisyon Sayısı

6

Overall Contact Length

0.385 9.77mm

Contact Materials

Brass

Reliability

COMMERCIAL

Montaj

Through Hole

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Kurşunsuz Kodu

yes

Din Conformance

NO

Option

GENERAL PURPOSE

Insulation Color

Black

Pitch Mating

0.100 2.54mm

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Thickness Mating

10.0μin 0.25μm

Ambalaj

Bulk

Nominal Gerilim

150VDC

Contact Length Post

0.118 3.00mm

Filter Feature

NO

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Terminal Adımı

2.54mm

Fastening Type

Push-Pull

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Contact Shape

Circular

Shrouding

Unshrouded

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Post

10.0μin 0.25μm

Mixed Contacts

NO

Durability

500 Cycles
