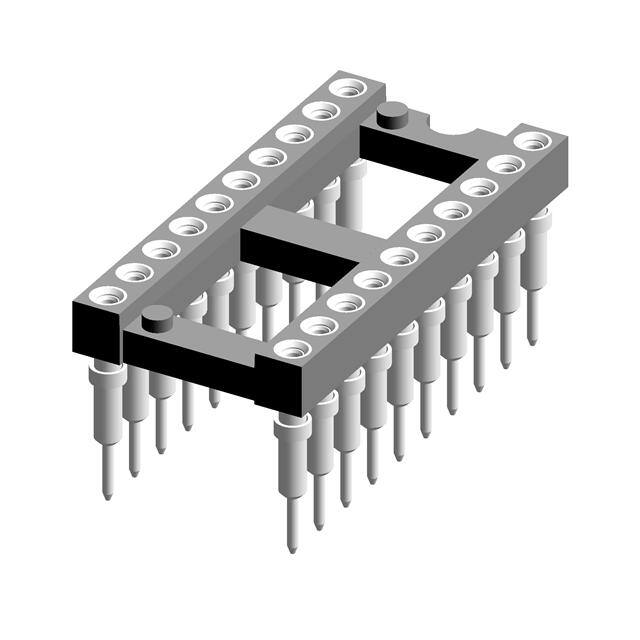

612-87-420-41-001101

Teknik Özellikler

JESD-609 Kodu

e3

Parça Durumu

Active

Akım Değeri

1A

Contact Finish Mating

Gold

Terminal

Solder

Contact Material Mating

Beryllium Copper

Pin Sayısı

20

ECCN Kodu

EAR99

Contact Finish Post

Tin

Flammability Rating

UL94 V-0

Tip

DIP, 0.4 (10.16mm) Row Spacing

Number Of Positions Or Pins Grid

20 (2 x 10)

Ambalaj

Bulk

Termination Post Length

0.291 7.39mm

Seri

612

Montaj Tipi

Through Hole

Contact Resistance

10mOhm

Material Flammability Rating

UL94 V-0

Özellikler

Carrier, Open Frame

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Finish Thickness Mating

Flash

Çalışma Sıcaklığı

-55°C~125°C

Contact Material Post

Brass

RoHS Durumu

ROHS3 Compliant

Pitch Post

0.100 2.54mm

Fabrika Tedarik Süresi

10 Weeks

Additional Feature

STANDARD: UL 94V-0

Lead Length

7.3914mm

Montaj

Through Hole

Yayın Yılı

2012

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Contacts

20

Pitch Mating

0.100 2.54mm

HTS Kodu

8536.69.40.40
