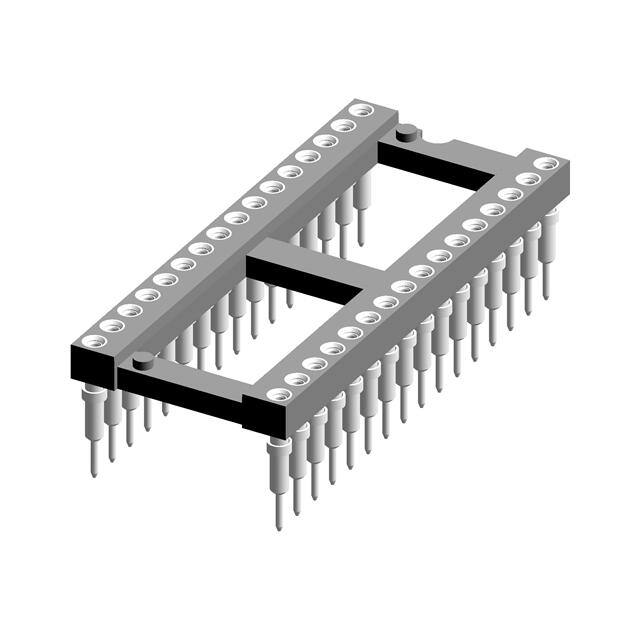

612-83-632-41-001101

Teknik Özellikler

Contact Finish Mating

Gold

JESD-609 Kodu

e3

Akım Değeri

1A

Parça Durumu

Active

Pin Sayısı

32

Terminal

Solder

Contact Material Mating

Beryllium Copper

Tip

DIP, 0.6 (15.24mm) Row Spacing

Number Of Positions Or Pins Grid

32 (2 x 16)

ECCN Kodu

EAR99

Flammability Rating

UL94 V-0

Contact Finish Post

Tin

Montaj Tipi

Through Hole

Ambalaj

Bulk

Seri

612

Termination Post Length

0.291 7.39mm

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

29.5μin 0.75μm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Resistance

10mOhm

Material Flammability Rating

UL94 V-0

Özellikler

Carrier, Open Frame

Pitch Post

0.100 2.54mm

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

10 Weeks

Contact Material Post

Brass

Montaj

Through Hole

Yayın Yılı

2012

Lead Length

7.3914mm

Additional Feature

STANDARD: UL 94V-0

Pitch Mating

0.100 2.54mm

Number Of Contacts

32

HTS Kodu

8536.69.40.40

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)
