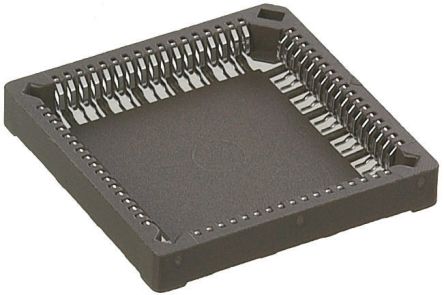

540-88-052-17-400

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Gender

Female

Yayın Yılı

2010

Number Of Positions Or Pins Grid

52 (4 x 13)

Flammability Rating

UL94 V-0

Contact Material Post

Phosphor Bronze

Voltage Rated Ac

100V

Montaj Tipi

Surface Mount

Tip

PLCC

Additional Feature

STANDARD: UL 94V-0, LOW PROFILE

Seri

540

Yükseklik

4.6mm

Maks. Çalışma Sıcaklığı

125°C

Kurşunsuz Kodu

yes

Orientation

Straight

Min. Çalışma Sıcaklığı

-55°C

Insulation Materials

Polyphenylene

Ambalaj

Bulk

Contact Resistance

20mOhm

Terminal

Solder

Pitch Mating

0.050 1.27mm

Contact Materials

Bronze

Akım Değeri

1A

Contact Material Mating

Phosphor Bronze

Montaj

Surface Mount

JESD-609 Kodu

e3

Contact Finish Mating

Tin

Housing Material

Polyphenylene Sulfide (PPS)

Nem Hassasiyeti (MSL)

1 (Unlimited)

HTS Kodu

8536.69.40.40

Voltage Rated Dc

150V

Depth

25.4mm

Fabrika Tedarik Süresi

10 Weeks

Uzunluk

25.4mm

RoHS Durumu

ROHS3 Compliant

Insulation Resistance

5GOhm

Parça Durumu

Active

ECCN Kodu

EAR99

Özellikler

Closed Frame

Number Of Contacts

52
