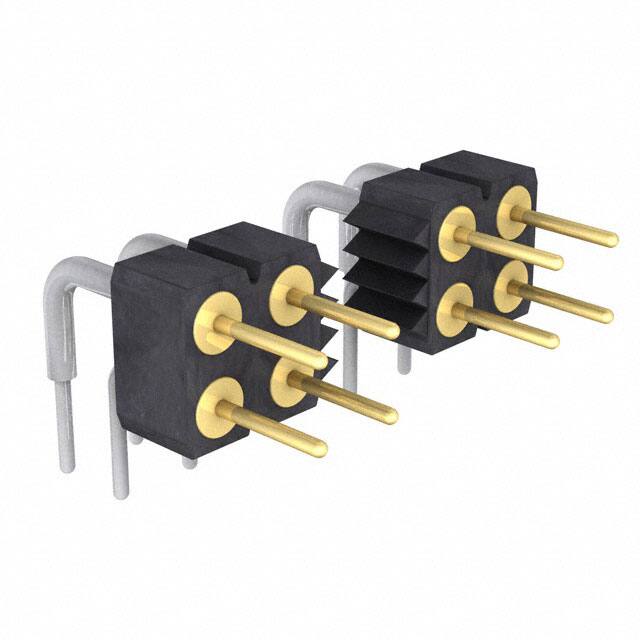

499-V3-220-10-009101

Teknik Özellikler

Depth

11.34mm

Contact Materials

Brass

Max Current Rating

3A

Gender

Male

Parça Durumu

Active

Mil Conformance

NO

Max Voltage Rating Dc

150V

Yayın Yılı

2012

Fastening Type

Push-Pull

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Din Conformance

NO

Nominal Gerilim

150VDC

Option

GENERAL PURPOSE

Iec Conformance

NO

Rated Current Signal

3A

Dielectric Withstanding Voltage

1400VAC V

Style

Board to Board

Insulation Resistance

10000000000Ohm

Orientation

Right Angle

Shrouding

Unshrouded

Contact Lengthmating

0.157 4.00mm

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

29.5μin 0.75μm

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Seri

499

Row Spacing Mating

0.100 (2.54mm)

Contact Type

Male Pin

Max Voltage Rating Ac

100V

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~125°C

Mixed Contacts

NO

ECCN Kodu

EAR99

Housing Color

Black

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Filter Feature

NO

Pozisyon Sayısı

20

Contact Shape

Circular
