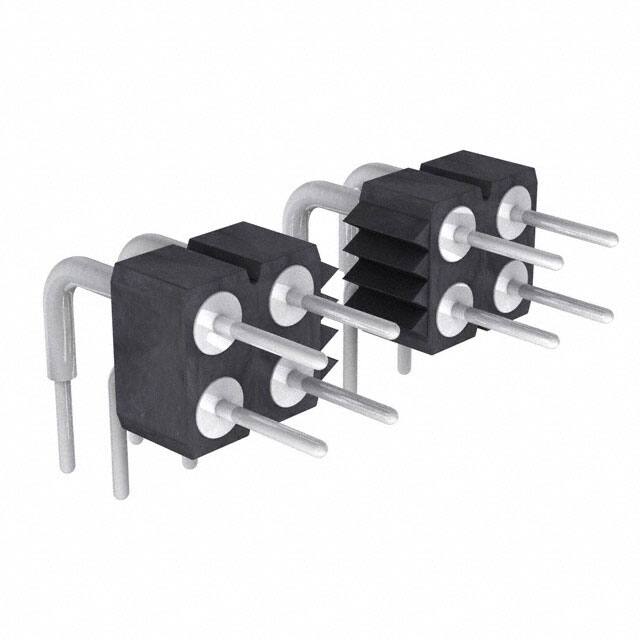

499-80-272-10-009101

Teknik Özellikler

Contact Length Post

0.126 3.20mm

Contact Shape

Circular

Çalışma Sıcaklığı

-55°C~125°C

Number Of Positions Loaded

All

Pozisyon Sayısı

72

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Filter Feature

NO

ECCN Kodu

EAR99

Mixed Contacts

NO

HTS Kodu

8536.69.40.40

Mating Contact Pitch

0.1 inch

Ambalaj

Bulk

Durability

500 Cycles

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Mating

Tin

Montaj

Through Hole

Reliability

COMMERCIAL

Terminal

Solder

Number Of Pcb Rows

2

Connector Type

Header

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.200 5.08mm

Number Of Conductors

ONE

Sıra Sayısı

2

Insulation Color

Black

Montaj Tipi

Through Hole, Right Angle

Reference Standard

UL

Pitch Mating

0.100 2.54mm

Mil Conformance

NO

Parça Durumu

Active

Din Conformance

NO

Nominal Gerilim

150VDC

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Yayın Yılı

2012

Fastening Type

Push-Pull

Body Length Or Diameter

3.6 inch

Contact Materials

Brass

Current Rating Amps

3A

Seri

499
