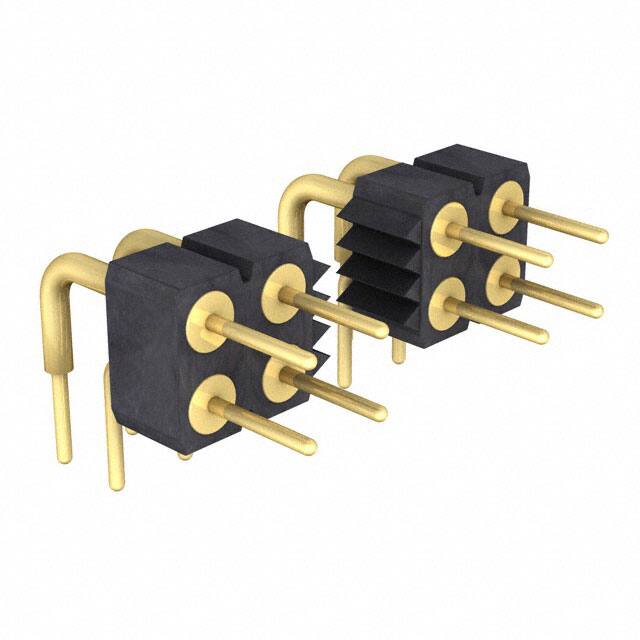

499-10-272-10-009101

Teknik Özellikler

Montaj

Through Hole

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

10 Weeks

Durability

500 Cycles

Ambalaj

Bulk

Mating Contact Pitch

0.1 inch

HTS Kodu

8536.69.40.40

Reference Standard

UL

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole, Right Angle

Insulation Color

Black

Sıra Sayısı

2

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.200 5.08mm

Number Of Pcb Rows

2

Connector Type

Header

Terminal

Solder

Reliability

COMMERCIAL

Contact Shape

Circular

Contact Length Post

0.126 3.20mm

Mixed Contacts

NO

ECCN Kodu

EAR99

Filter Feature

NO

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pozisyon Sayısı

72

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~125°C

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

10.0μin 0.25μm

Contact Type

Male Pin

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ul Flammability Code

94V-0

Contact Finish Thickness Mating

10.0μin 0.25μm

JESD-609 Kodu

e4

Seri

499

Style

Board to Board

Insulation Resistance

10000000000Ohm

Contact Lengthmating

0.157 4.00mm
