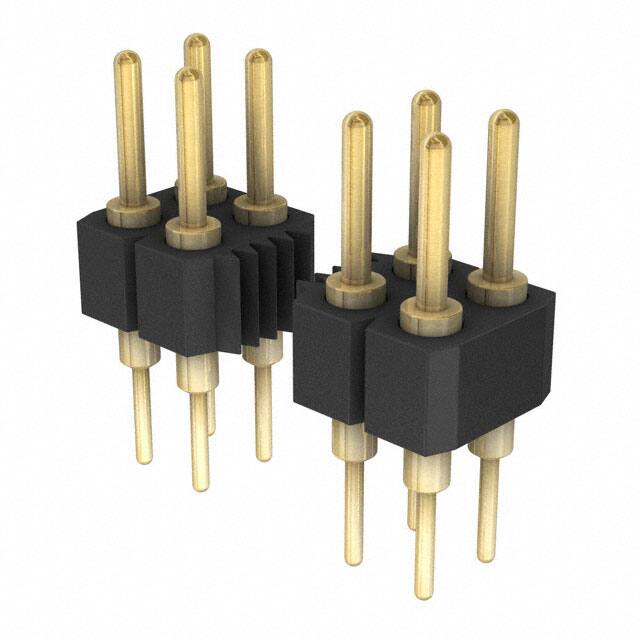

450-10-268-00-018101

Teknik Özellikler

Montaj

Through Hole

Insulation Color

Black

Yayın Yılı

2012

Plating Thickness

10μin

Durability

500 Cycles

Contact Finish Thickness Post

10.0μin 0.25μm

Reliability

COMMERCIAL

Fastening Type

Push-Pull

Pitch Mating

0.100 2.54mm

Contact Length Post

0.124 3.15mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Resistance

10000000000Ohm

Contact Finish Thickness Mating

10.0μin 0.25μm

Çalışma Sıcaklığı

-55°C~125°C

Material Flammability Rating

UL94 V-0

Style

Board to Board

Number Of Positions Loaded

All

Current Rating Amps

3A

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.110 2.79mm

Fabrika Tedarik Süresi

10 Weeks

Contact Shape

Circular

Overall Contact Length

0.480 12.19mm

Nominal Gerilim

150VDC

Pozisyon Sayısı

68

Contact Materials

Brass

Number Of Conductors

ONE

Dielectric Withstanding Voltage

1400VAC V

Body Length Or Diameter

3.4 inch

Montaj Tipi

Through Hole

Ambalaj

Bulk

Reference Standard

UL

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Seri

450

Mating Contact Pitch

0.1 inch

Contact Finish Mating

Gold

Number Of Pcb Rows

2

Shrouding

Unshrouded

Contact Lengthmating

0.169 4.30mm
