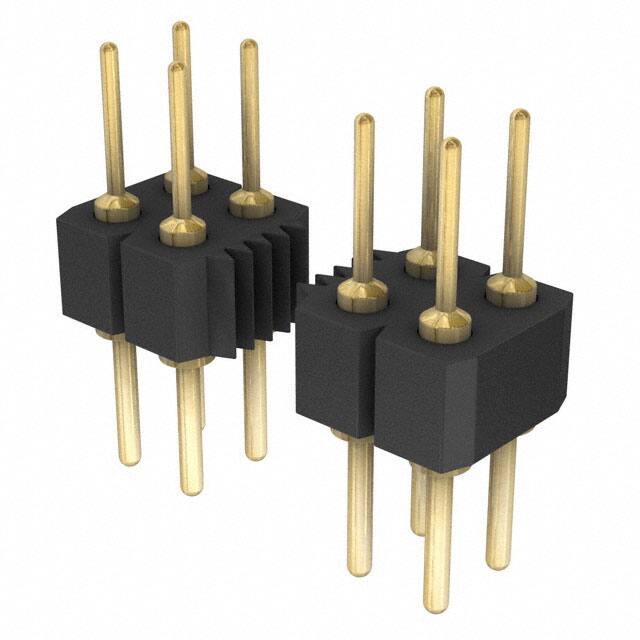

450-10-262-00-001101

Teknik Özellikler

Body Length Or Diameter

3.1 inch

Pozisyon Sayısı

62

Nominal Gerilim

150VDC

Reference Standard

UL

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pcb Contact Pattern

RECTANGULAR

Shrouding

Unshrouded

Connector Type

Header

Parça Durumu

Active

Sıra Sayısı

2

Terminal

Solder

Contact Finish Thickness Post

10.0μin 0.25μm

Yayın Yılı

2012

Pitch Mating

0.100 2.54mm

Contact Length Post

0.164 4.17mm

Fastening Type

Push-Pull

Contact Type

Male Pin

Current Rating Amps

3A

Çalışma Sıcaklığı

-55°C~125°C

Insulation Resistance

10000000000Ohm

Overall Contact Length

0.477 12.12mm

Contact Shape

Circular

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.110 2.79mm

Fabrika Tedarik Süresi

10 Weeks

Number Of Conductors

ONE

Dielectric Withstanding Voltage

1400VAC V

Length Termination

0.164 inch

Contact Materials

Brass

Ambalaj

Bulk

Seri

450

Montaj Tipi

Through Hole

Number Of Pcb Rows

2

Contact Lengthmating

0.156 3.96mm

Mating Contact Pitch

0.1 inch

Contact Finish Mating

Gold

Row Spacing Mating

0.100 (2.54mm)

Body Depth

0.157 inch

Reliability

COMMERCIAL

Insulation Color

Black
