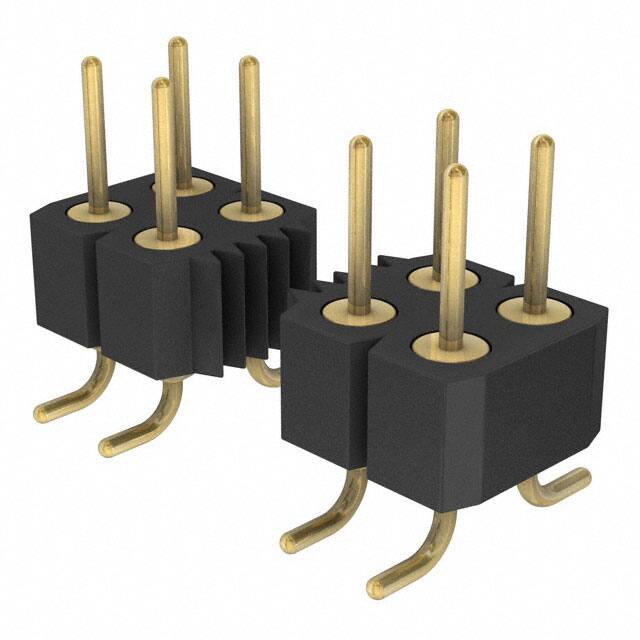

450-10-242-00-106101

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.100 2.54mm

Fastening Type

Push-Pull

Reliability

COMMERCIAL

Contact Finish Thickness Post

10.0μin 0.25μm

Durability

500 Cycles

Plating Thickness

10μin

Yayın Yılı

2012

Insulation Color

Black

Montaj

Surface Mount

Contact Shape

Circular

Fabrika Tedarik Süresi

10 Weeks

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.110 2.79mm

Contact Type

Male Pin

Current Rating Amps

3A

Number Of Positions Loaded

All

Style

Board to Board

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

10.0μin 0.25μm

Insulation Resistance

10000000000Ohm

Seri

450

Total Number Of Contacts

42

Pcb Contact Row Spacing

4.8006 mm

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Reference Standard

UL

Ambalaj

Bulk

Pcb Contact Pattern

RECTANGULAR

Montaj Tipi

Surface Mount

Number Of Conductors

ONE

Dielectric Withstanding Voltage

1400VAC V

Pozisyon Sayısı

42

Contact Materials

Brass

Nominal Gerilim

150VDC

Row Spacing Mating

0.100 (2.54mm)

Body Depth

0.189 inch

Sıra Sayısı

2

Terminal

Solder

Connector Type

Header
