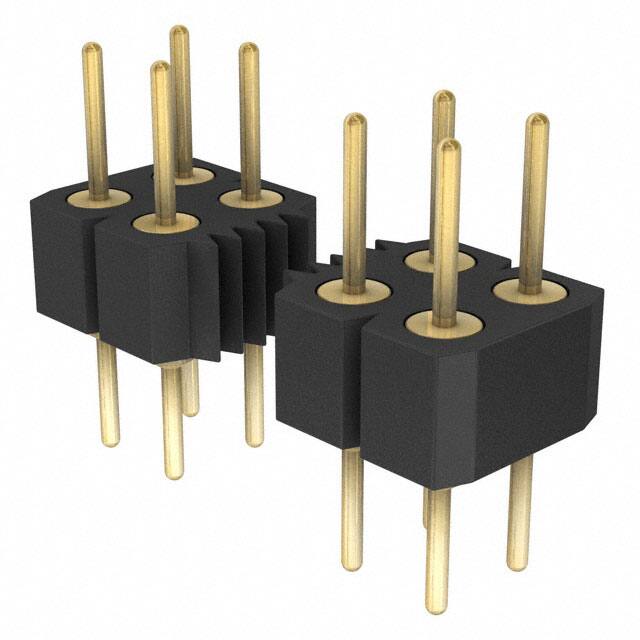

450-10-236-00-006101

Teknik Özellikler

Seri

450

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Ambalaj

Bulk

Montaj Tipi

Through Hole

Iec Conformance

NO

Filter Feature

NO

Nominal Gerilim

150VDC

Pozisyon Sayısı

36

Option

GENERAL PURPOSE

Contact Materials

Brass

Mil Conformance

NO

Row Spacing Mating

0.100 (2.54mm)

Sıra Sayısı

2

Terminal

Solder

Connector Type

Header

Parça Durumu

Active

Contact Lengthmating

0.141 3.60mm

JESD-609 Kodu

e4

Shrouding

Unshrouded

Contact Finish Mating

Gold

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Contact Length Post

0.114 2.90mm

Pitch Mating

0.100 2.54mm

Fastening Type

Push-Pull

Contact Finish Thickness Post

10.0μin 0.25μm

Additional Feature

LOW PROFILE

Yayın Yılı

2012

Insulation Color

Black

Montaj

Through Hole

Overall Contact Length

0.394 10.00mm

Contact Shape

Circular

Fabrika Tedarik Süresi

10 Weeks

Mixed Contacts

NO

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.110 2.79mm

Contact Type

Male Pin

Din Conformance

NO

Current Rating Amps

3A
