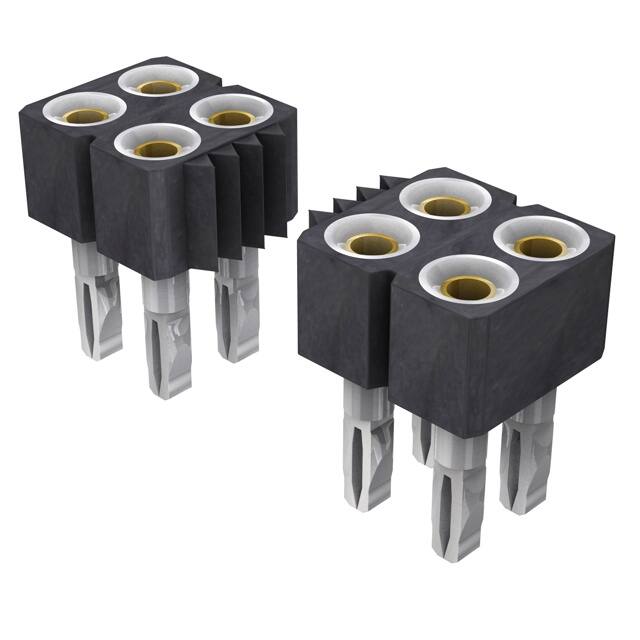

446-87-232-41-036101

Teknik Özellikler

Fabrika Tedarik Süresi

10 Weeks

Terminal

Press-Fit, Solder

Contact Length Post

0.110 2.79mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

ECCN Kodu

EAR99

Number Of Pcb Rows

2

Montaj

Through Hole

Contact Type

Female Socket

Length Termination

0.11 inch

HTS Kodu

8536.69.40.40

Pitch Mating

0.100 2.54mm

Contact Materials

Beryllium Copper

Fastening Type

Push-Pull

Çalışma Sıcaklığı

-55°C~125°C

Reliability

COMMERCIAL

Contact Resistance

10mOhm

Number Of Conductors

ONE

Body Depth

0.173 inch

Current Rating Amps

3A

Insulation Height

0.173 4.40mm

Dielectric Withstanding Voltage

1000VAC V

Style

Board to Board

Polarization Key

POLARIZED HOUSING

Number Of Positions Loaded

All

Insulation Resistance

10000000000Ohm

Body Length Or Diameter

1.6 inch

Contact Finish Mating

Gold

Contact Finish Post

Tin

Durability

500 Cycles

Connector Type

Socket

Row Spacing Mating

0.100 (2.54mm)

Seri

446

Material Flammability Rating

UL94 V-0

Contact Shape

Circular

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pozisyon Sayısı

32

Mating Contact Pitch

0.1 inch

Sıra Sayısı

2

Yayın Yılı

2012
