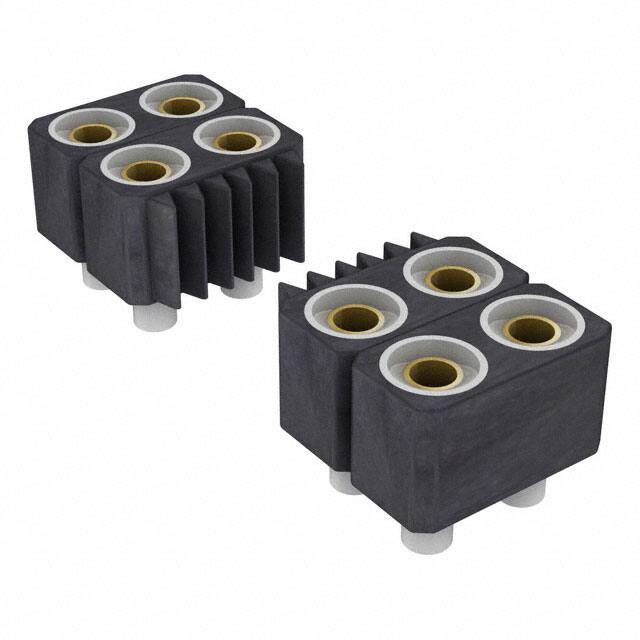

414-83-264-41-134101

Teknik Özellikler

HTS Kodu

8536.69.40.40

Montaj Tipi

Surface Mount

Material Flammability Rating

UL94 V-0

Insulation Resistance

10000000000Ohm

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Shape

Circular

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Beryllium Copper

Polarization Key

POLARIZED HOUSING

Contact Finish Thickness Mating

29.5μin 0.75μm

Pcb Contact Pattern

RECTANGULAR

Fastening Type

Push-Pull

Number Of Conductors

ONE

Plating Thickness

30μin

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2012

Total Number Of Contacts

64

Terminal

Solder

Durability

500 Cycles

Contact Type

Female Socket

Mating Contact Pitch

0.1 inch

Ambalaj

Bulk

Connector Type

Socket

Current Rating Amps

3A

Number Of Pcb Rows

2

Seri

414

Contact Finish Mating

Gold

Reference Standard

UL

ECCN Kodu

EAR99

Pitch Mating

0.100 2.54mm

Sıra Sayısı

2

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~125°C

Fabrika Tedarik Süresi

10 Weeks

Dielectric Withstanding Voltage

1400VAC V

Reliability

COMMERCIAL

Parça Durumu

Active

Pozisyon Sayısı

64

Insulation Color

Black

Row Spacing Mating

0.100 (2.54mm)
