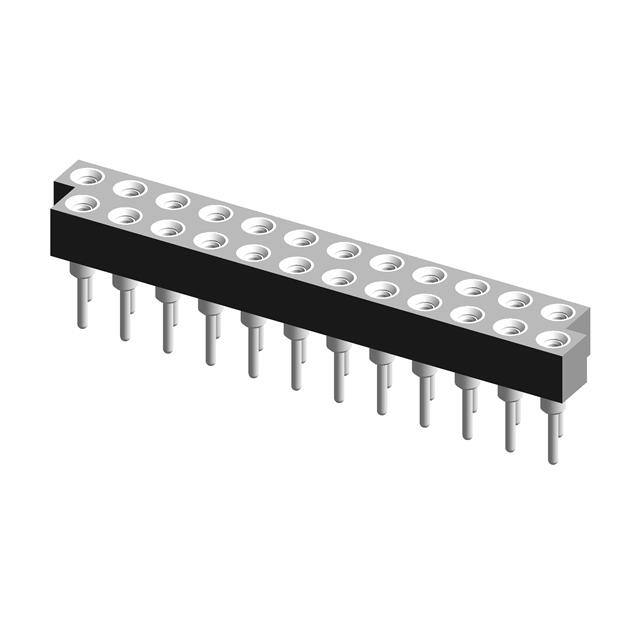

410-87-224-10-002101

Teknik Özellikler

Insulation Resistance

10000000000Ohm

Montaj Tipi

Through Hole

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Montaj

Through Hole

Contact Material Post

Brass

ECCN Kodu

EAR99

Dielectric Withstanding Voltage

1400VAC V

Seri

410

Contact Finish Mating

Gold

Mating Contact Pitch

0.1 inch

Contact Finish Thickness Mating

Flash

Çalışma Sıcaklığı

-55°C~125°C

Number Of Contacts

24

Tip

Zig-Zag, Right Stackable

Body Breadth

0.197 inch

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Terminal

Solder

Termination Post Length

0.125 3.18mm

Pitch Post

0.100 2.54mm

Body Depth

0.165 inch

Pin Sayısı

24

Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

HTS Kodu

8536.69.40.40

Lead Length

3.175mm

Number Of Positions Or Pins Grid

24 (2 x 12)

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Contact Style

RND PIN-SKT

Contact Material Mating

Beryllium Copper

Contact Finish Post

Tin

Akım Değeri

1A

Contact Resistance

10mOhm

Yayın Yılı

2012

Pitch Mating

0.100 2.54mm
