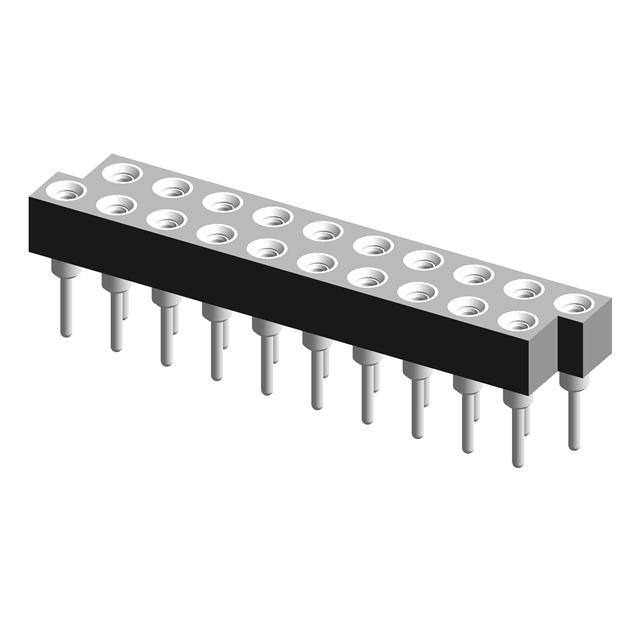

410-87-220-10-001101

Teknik Özellikler

Number Of Contacts

20

Tip

Zig-Zag, Left Stackable

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

Flash

Mating Contact Pitch

0.1 inch

Contact Finish Mating

Gold

Dielectric Withstanding Voltage

1400VAC V

Seri

410

ECCN Kodu

EAR99

Montaj

Through Hole

Contact Material Post

Brass

Montaj Tipi

Through Hole

Parça Durumu

Active

Body Length Or Diameter

1.046 inch

RoHS Durumu

ROHS3 Compliant

Insulation Resistance

10000000000Ohm

Pitch Mating

0.100 2.54mm

Yayın Yılı

2012

Contact Resistance

10mOhm

Akım Değeri

1A

Contact Material Mating

Beryllium Copper

Contact Finish Post

Tin

Fabrika Tedarik Süresi

10 Weeks

Contact Style

RND PIN-SKT

Material Flammability Rating

UL94 V-0

Lead Length

3.175mm

Number Of Positions Or Pins Grid

20 (2 x 10)

HTS Kodu

8536.69.40.40

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Termination Post Length

0.125 3.18mm

Pitch Post

0.100 2.54mm

Body Depth

0.165 inch

Pin Sayısı

20

Flammability Rating

UL94 V-0

Terminal

Solder

Body Breadth

0.197 inch

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
