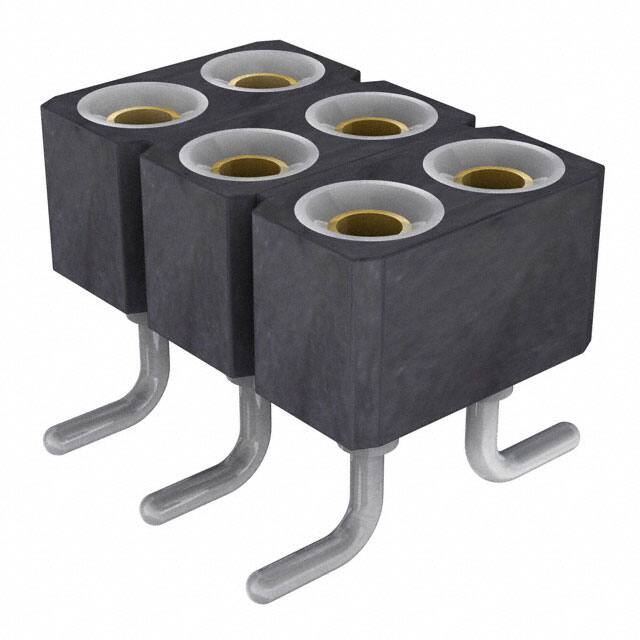

410-87-206-41-105101

Teknik Özellikler

Durability

500 Cycles

Insulation Color

Black

Contact Type

Female Socket

Kılıf / Paket

SIL

Contact Shape

Circular

Number Of Pcb Rows

2

Terminal

Solder

Contact Materials

Beryllium Copper

Style

Board to Board

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Polarization Key

POLARIZED HOUSING

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Contact Finish Post

Tin

Connector Type

Socket

Fabrika Tedarik Süresi

10 Weeks

Pcb Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Contact Resistance

10mOhm

Nominal Gerilim

150V

Akım Değeri

3A

Insulation Height

0.220 5.60mm

Pitch Mating

0.100 2.54mm

Yayın Yılı

2010

Sıra Sayısı

2

Insulation Resistance

10000000000Ohm

Pozisyon Sayısı

6

Montaj

Surface Mount

Montaj Tipi

Surface Mount

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Orientation

Right Angle

Body Length Or Diameter

0.3 inch

Reference Standard

UL

Dielectric Withstanding Voltage

1400VAC V

Seri

410

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Mating Contact Pitch

0.1 inch

Contact Finish Mating

Gold
