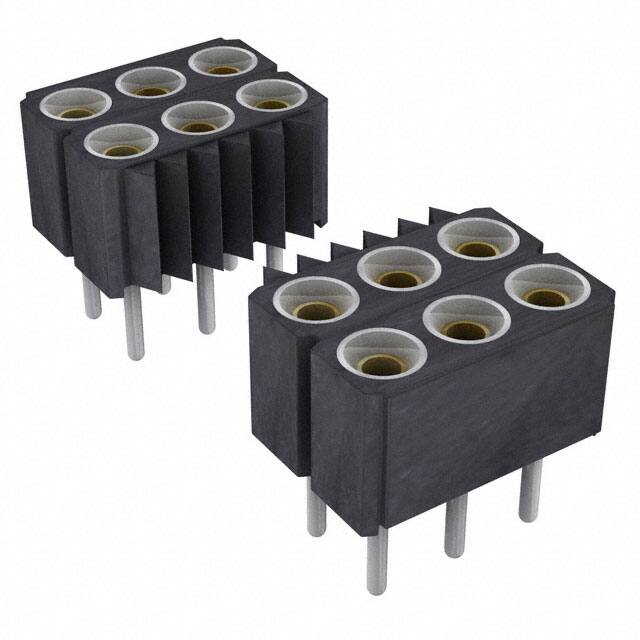

410-83-339-01-640101

Teknik Özellikler

Reliability

COMMERCIAL

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

29.5μin 0.75μm

Number Of Positions Loaded

All

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Mating

Gold

Mating Contact Pitch

0.1 inch

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Dielectric Withstanding Voltage

1400VAC V

Seri

410

Reference Standard

UL

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Through Hole

Montaj

Through Hole

Insulation Resistance

10000000000Ohm

Pozisyon Sayısı

39

Sıra Sayısı

3

Yayın Yılı

2012

Pitch Mating

0.100 2.54mm

Terminal Adımı

2.54mm

Current Rating Amps

3A

Insulation Height

0.165 4.20mm

Number Of Conductors

ONE

Contact Resistance

10mOhm

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Socket

Length Termination

0.125 inch

Contact Finish Post

Tin

Fastening Type

Push-Pull

Material Flammability Rating

UL94 V-0

Body Depth

0.165 inch

Polarization Key

POLARIZED HOUSING

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board

Contact Length Post

0.125 3.18mm

Contact Materials

Beryllium Copper

Pcb Contact Row Spacing

2.54 mm
