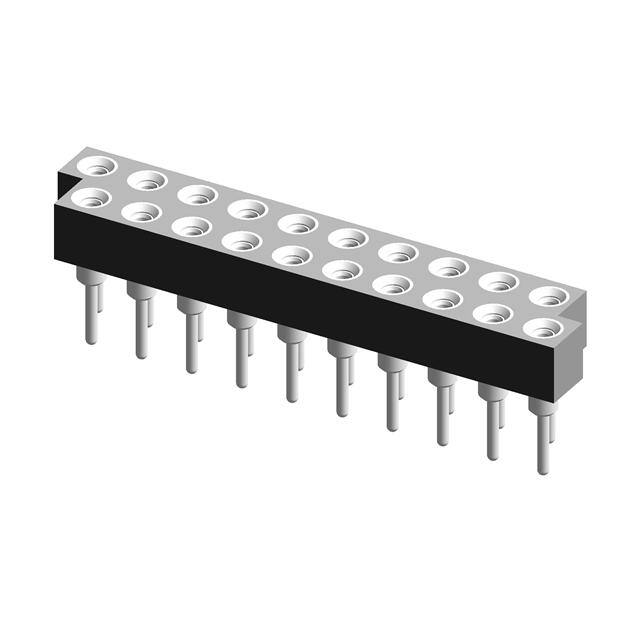

410-83-220-10-002101

Teknik Özellikler

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Body Breadth

0.197 inch

Terminal

Solder

Termination Post Length

0.125 3.18mm

Pitch Post

0.100 2.54mm

Body Depth

0.165 inch

Pin Sayısı

20

Flammability Rating

UL94 V-0

HTS Kodu

8536.69.40.40

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Number Of Positions Or Pins Grid

20 (2 x 10)

Lead Length

3.175mm

Material Flammability Rating

UL94 V-0

Contact Style

RND PIN-SKT

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Post

Tin

Contact Material Mating

Beryllium Copper

Akım Değeri

1A

Contact Resistance

10mOhm

Yayın Yılı

2012

Pitch Mating

0.100 2.54mm

Insulation Resistance

10000000000Ohm

Montaj Tipi

Through Hole

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Body Length Or Diameter

1.046 inch

Contact Material Post

Brass

Montaj

Through Hole

ECCN Kodu

EAR99

Dielectric Withstanding Voltage

1400VAC V

Seri

410

Contact Finish Mating

Gold

Mating Contact Pitch

0.1 inch

Contact Finish Thickness Mating

29.5μin 0.75μm

Çalışma Sıcaklığı

-55°C~125°C

Tip

Zig-Zag, Right Stackable

Number Of Contacts

20
