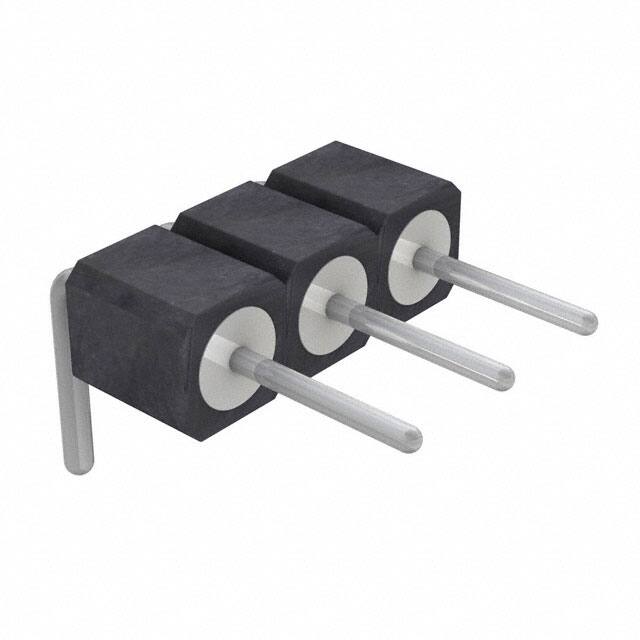

399-80-103-10-009101

Teknik Özellikler

Parça Durumu

Active

Current Rating Amps

3A

Kurşunsuz Kodu

yes

Contact Materials

Brass

Contact Lengthmating

0.157 4.00mm

Mixed Contacts

NO

Pitch Mating

0.100 2.54mm

Çalışma Sıcaklığı

-55°C~125°C

Terminal Adımı

2.54mm

Connector Type

Header

Shrouding

Unshrouded

Montaj

Through Hole

Sıra Sayısı

1

Iec Conformance

NO

Style

Board to Board

Nominal Gerilim

150VDC

Seri

399

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Pozisyon Sayısı

3

Yayın Yılı

2012

Mil Conformance

NO

Ambalaj

Bulk

Insulation Height

0.100 2.54mm

Contact Length Post

0.126 3.20mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole, Right Angle

Filter Feature

NO

Din Conformance

NO

JESD-609 Kodu

e3

Number Of Positions Loaded

All

Contact Shape

Circular

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Ul Flammability Code

94V-0

Insulation Color

Black

Contact Finish Mating

Tin

Terminal

Solder

Option

GENERAL PURPOSE
