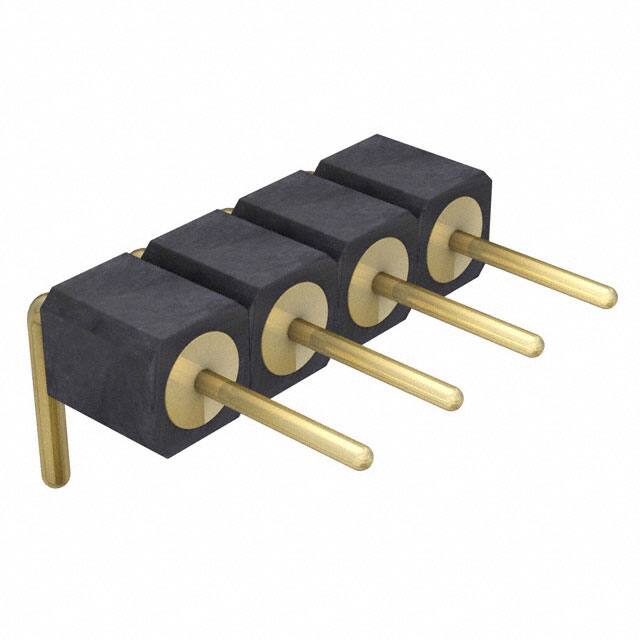

399-10-104-10-009101

Teknik Özellikler

Parça Durumu

Active

Kurşunsuz Kodu

yes

Contact Materials

Brass

Contact Finish Thickness Mating

10.0μin 0.25μm

Contact Lengthmating

0.157 4.00mm

Mixed Contacts

NO

Pitch Mating

0.100 2.54mm

Max Current Rating

3A

Depth

8.8mm

Çalışma Sıcaklığı

-55°C~125°C

Orientation

Right Angle

Connector Type

Header

Shrouding

Unshrouded

Montaj

Through Hole

Sıra Sayısı

1

Iec Conformance

NO

Style

Board to Board

Uzunluk

10.16mm

Nominal Gerilim

150VDC

Seri

399

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Pozisyon Sayısı

4

Yayın Yılı

2012

Housing Material

Polychlorinated

Mil Conformance

NO

Insulation Height

0.100 2.54mm

Ambalaj

Bulk

Contact Length Post

0.126 3.20mm

Contact Finish Thickness Post

10.0μin 0.25μm

Housing Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole, Right Angle

Filter Feature

NO

JESD-609 Kodu

e4

Din Conformance

NO

Number Of Positions Loaded

All

Contact Shape

Circular

Max Voltage Rating Ac

100V

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
