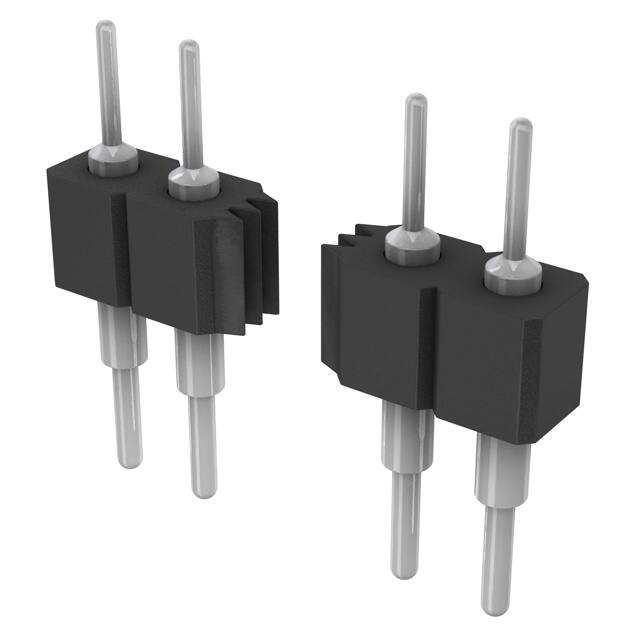

351-80-154-00-005101

Teknik Özellikler

Connector Type

Header

Ambalaj

Bulk

Montaj Tipi

Through Hole

Iec Conformance

NO

Filter Feature

NO

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Seri

351

Contact Shape

Circular

Kurşunsuz Kodu

yes

Yayın Yılı

2012

Contact Length Post

0.126 3.20mm

Montaj

Through Hole

Contact Finish Mating

Tin

Insulation Height

0.116 2.95mm

Contact Lengthmating

0.118 3.00mm

Fastening Type

Push-Pull

Overall Contact Length

0.846 21.50mm

Sıra Sayısı

1

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Din Conformance

NO

Style

Board to Board

Fabrika Tedarik Süresi

10 Weeks

JESD-609 Kodu

e3

Pitch Mating

0.100 2.54mm

Ul Flammability Code

94V-0

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Type

Male Pin

Current Rating Amps

3A

Mil Conformance

NO

Pozisyon Sayısı

54

Çalışma Sıcaklığı

-55°C~125°C

Option

GENERAL PURPOSE

Insulation Color

Black

Nominal Gerilim

150VDC

Mixed Contacts

NO

Shrouding

Unshrouded

Material Flammability Rating

UL94 V-0
