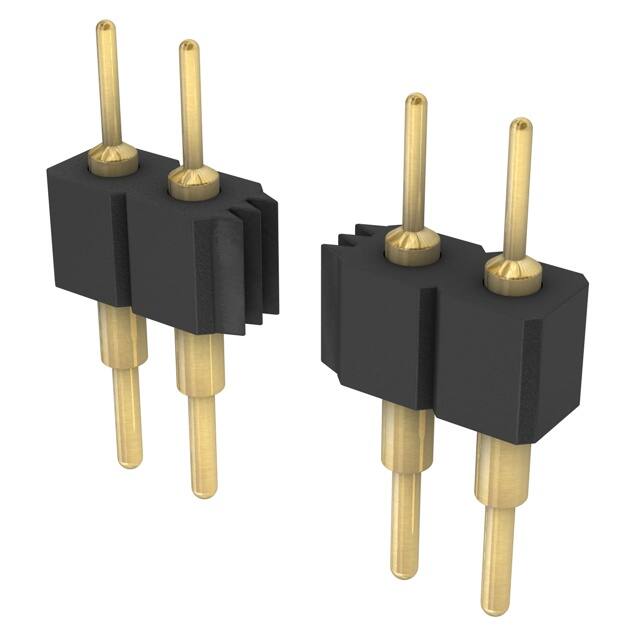

351-10-139-00-004101

Teknik Özellikler

Iec Conformance

NO

Filter Feature

NO

Connector Type

Header

Montaj Tipi

Through Hole

Ambalaj

Bulk

Seri

351

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Contact Finish Mating

Gold

Insulation Height

0.116 2.95mm

Contact Length Post

0.126 3.20mm

Montaj

Through Hole

Kurşunsuz Kodu

yes

Yayın Yılı

2012

Contact Shape

Circular

Overall Contact Length

0.575 14.60mm

Sıra Sayısı

1

Fastening Type

Push-Pull

Contact Lengthmating

0.118 3.00mm

Din Conformance

NO

Number Of Positions Loaded

All

JESD-609 Kodu

e4

Fabrika Tedarik Süresi

10 Weeks

Style

Board to Board

Parça Durumu

Active

Terminal Adımı

2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Rating Amps

3A

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Ul Flammability Code

94V-0

Pitch Mating

0.100 2.54mm

Contact Type

Male Pin

Insulation Color

Black

Çalışma Sıcaklığı

-55°C~125°C

Option

GENERAL PURPOSE

Mil Conformance

NO

Pozisyon Sayısı

39

Contact Finish Thickness Post

10.0μin 0.25μm

Material Flammability Rating

UL94 V-0

Mixed Contacts

NO
