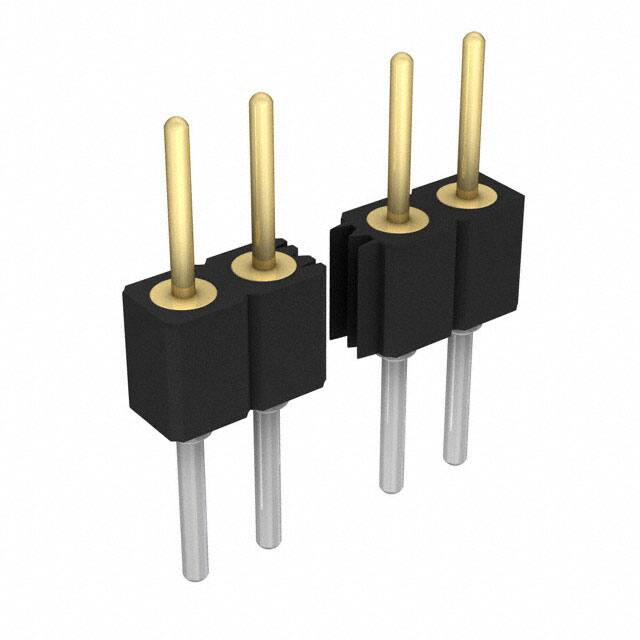

350-V3-144-00-006101

Teknik Özellikler

Reference Standard

UL

Number Of Pcb Rows

1

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Sıra Sayısı

1

Contact Length Post

0.114 2.90mm

Connector Type

Header

Fastening Type

Push-Pull

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.100 2.54mm

Insulation Color

Black

Terminal Adımı

2.54mm

Yayın Yılı

2012

Ambalaj

Bulk

Terminal

Solder

Shrouding

Unshrouded

Number Of Conductors

ONE

Pozisyon Sayısı

44

Contact Type

Male Pin

Contact Finish Post

Tin

Contact Lengthmating

0.141 3.60mm

JESD-609 Kodu

e3

Contact Finish Thickness Mating

29.5μin 0.75μm

Seri

350

Contact Shape

Circular

Montaj

Through Hole

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Montaj Tipi

Through Hole

Overall Contact Length

0.394 10.00mm

Nominal Gerilim

150VDC

Durability

500 Cycles

Current Rating Amps

3A

Body Length Or Diameter

4.4 inch

Plating Thickness

30μin

Parça Durumu

Active

Contact Materials

Brass
