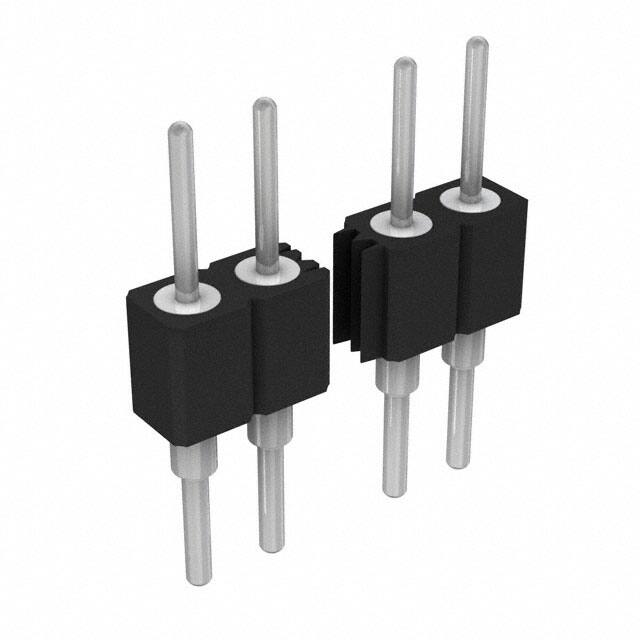

350-80-139-00-018101

Teknik Özellikler

Terminal

Solder

Ambalaj

Bulk

Number Of Conductors

ONE

Shrouding

Unshrouded

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Black

Contact Type

Male Pin

Pozisyon Sayısı

39

Contact Finish Mating

Tin

Din Conformance

NO

Contact Shape

Circular

Seri

350

Montaj

Through Hole

Reliability

COMMERCIAL

Option

GENERAL PURPOSE

Body Length Or Diameter

3.9 inch

Current Rating Amps

3A

Durability

500 Cycles

Kurşunsuz Kodu

yes

Contact Materials

Brass

Filter Feature

NO

Number Of Positions Loaded

All

Fastening Type

Push-Pull

Contact Length Post

0.124 3.15mm

Connector Type

Header

Sıra Sayısı

1

Mil Conformance

NO

Mixed Contacts

NO

Reference Standard

UL

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Number Of Pcb Rows

1

Iec Conformance

NO

Yayın Yılı

2012

Terminal Adımı

2.54mm

Ul Flammability Code

94V-0

Pitch Mating

0.100 2.54mm

JESD-609 Kodu

e3

Contact Lengthmating

0.169 4.30mm

HTS Kodu

8536.69.40.40
