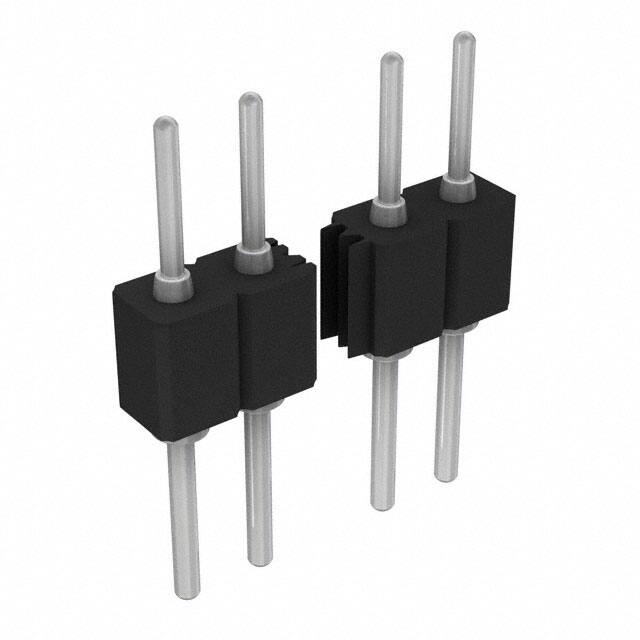

350-80-109-00-001101

Teknik Özellikler

Overall Contact Length

0.477 12.12mm

Nominal Gerilim

150VDC

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Insulation Height

0.110 2.79mm

Gender

Male

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Style

Board to Board

Orientation

Straight

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Current Rating

3A

JESD-609 Kodu

e3

Contact Lengthmating

0.156 3.96mm

Number Of Positions Loaded

All

Sıra Sayısı

1

Connector Type

Header

Contact Length Post

0.164 4.17mm

Fastening Type

Push-Pull

Reference Standard

UL

Mixed Contacts

NO

Mil Conformance

NO

Iec Conformance

NO

Number Of Pcb Rows

1

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Yayın Yılı

2012

Uzunluk

22.86mm

Housing Material

Polychlorinated

Pitch Mating

0.100 2.54mm

Durability

500 Cycles

Kurşunsuz Kodu

yes

Contact Materials

Brass

Filter Feature

NO

Max Voltage Rating Ac

100V

Contact Finish Mating

Tin

Radyasyon Dayanımı

No

Seri

350

Contact Shape

Circular
