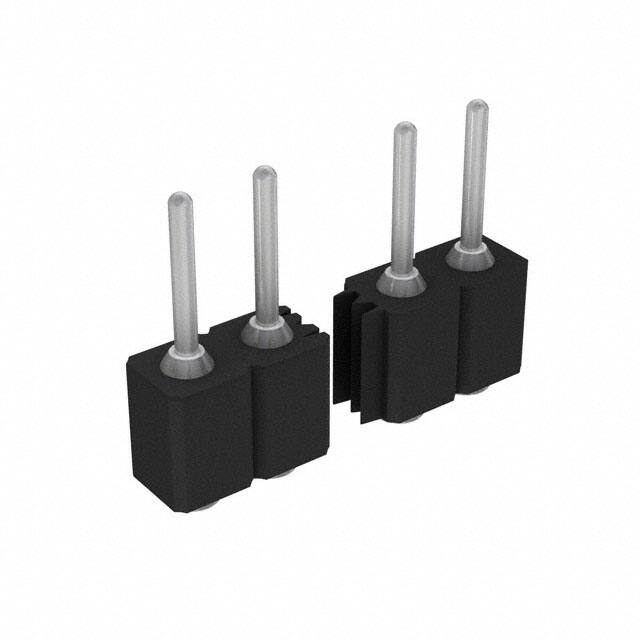

350-80-108-01-899101

Teknik Özellikler

Parça Durumu

Active

Total Number Of Contacts

8

Contact Gender

FEMALE

Style

Board to Board

Contact Materials

Brass

Insulation Height

0.110 2.79mm

Çalışma Sıcaklığı

-55°C~125°C

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Nominal Gerilim

150VDC

Durability

500 Cycles

ECCN Kodu

EAR99

Current Rating Amps

3A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

10 Weeks

Montaj Tipi

Surface Mount

Reliability

COMMERCIAL

Montaj

Surface Mount

Seri

350

Contact Shape

Circular

Contact Finish Mating

Tin

Contact Lengthmating

0.141 3.60mm

Contact Finish Thickness Mating

Flash

Pozisyon Sayısı

8

Contact Type

Male Pin

Insulation Color

Black

Pitch Mating

0.100 2.54mm

Terminal Adımı

2.54mm

Pcb Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Shrouding

Unshrouded

Terminal

Solder

Ambalaj

Bulk

Yayın Yılı

2012

Number Of Pcb Rows

1

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Reference Standard

UL

Sıra Sayısı

1

Fastening Type

Push-Pull

Connector Type

Header
