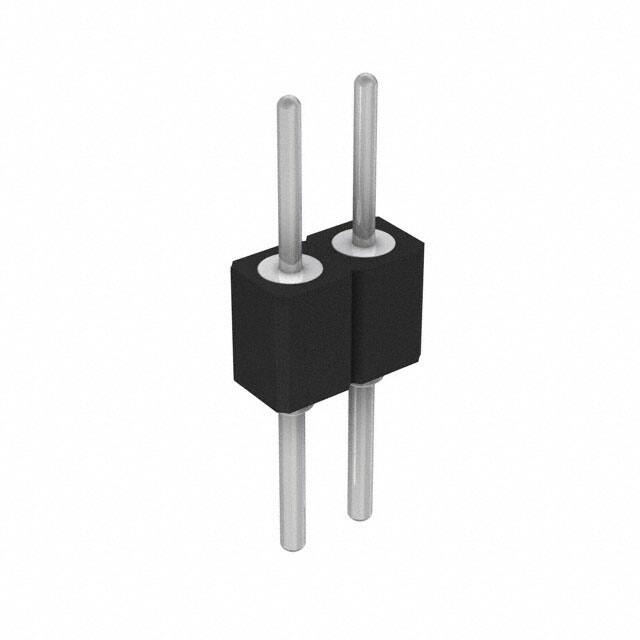

350-80-102-00-006101

Teknik Özellikler

Connector Type

Header

Contact Length Post

0.114 2.90mm

Fastening Type

Push-Pull

Sıra Sayısı

1

Number Of Positions Loaded

All

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Number Of Pcb Rows

1

Reference Standard

UL

Uzunluk

5.08mm

Yayın Yılı

2010

Pitch Mating

0.100 2.54mm

Housing Material

Polychlorinated

Max Current Rating

1A

JESD-609 Kodu

e3

Contact Lengthmating

0.141 3.60mm

HTS Kodu

8536.69.40.40

Orientation

Straight

Montaj Tipi

Through Hole

Akım Değeri

3A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Nominal Gerilim

150VDC

Overall Contact Length

0.394 10.00mm

Gender

Male

Çalışma Sıcaklığı

-55°C~125°C

Insulation Height

0.110 2.79mm

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Style

Board to Board

Parça Durumu

Active

Shrouding

Unshrouded

Number Of Conductors

ONE

Terminal

Solder

Ambalaj

Bulk

Pcb Contact Pattern

RECTANGULAR

Contact Type

Male Pin

Pozisyon Sayısı

2

Housing Color

Black

Depth

2.54mm
