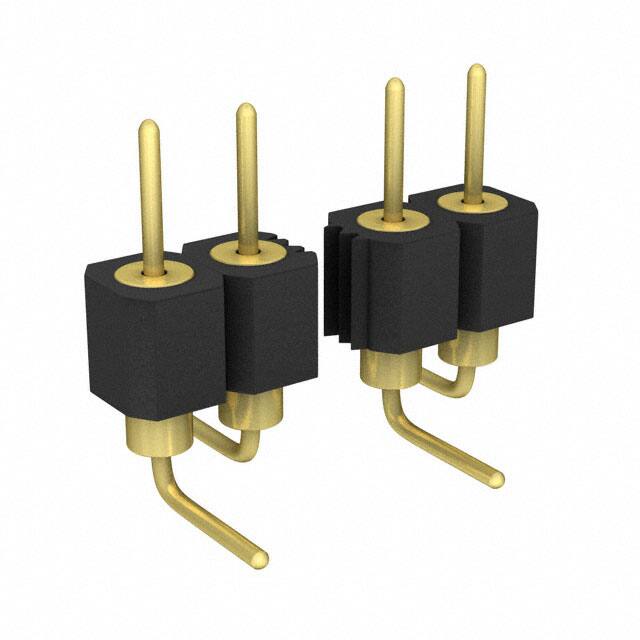

350-10-156-00-106101

Teknik Özellikler

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount

ECCN Kodu

EAR99

Nominal Gerilim

150VDC

Parça Durumu

Active

Total Number Of Contacts

56

Style

Board to Board

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Insulation Height

0.116 2.95mm

Çalışma Sıcaklığı

-55°C~125°C

Reference Standard

UL

Mixed Contacts

NO

Mil Conformance

NO

Iec Conformance

NO

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Sıra Sayısı

1

Connector Type

Header

Fastening Type

Push-Pull

Pitch Mating

0.100 2.54mm

Ul Flammability Code

94V-0

Terminal Adımı

2.54mm

Yayın Yılı

2012

HTS Kodu

8536.69.40.40

Contact Lengthmating

0.141 3.60mm

JESD-609 Kodu

e4

Seri

350

Din Conformance

NO

Contact Shape

Circular

Montaj

Surface Mount

Contact Finish Mating

Gold

Option

GENERAL PURPOSE

Reliability

COMMERCIAL

Durability

500 Cycles

Body Length Or Diameter

5.6 inch

Current Rating Amps

3A

Plating Thickness

9.8μin

Contact Materials

Brass
