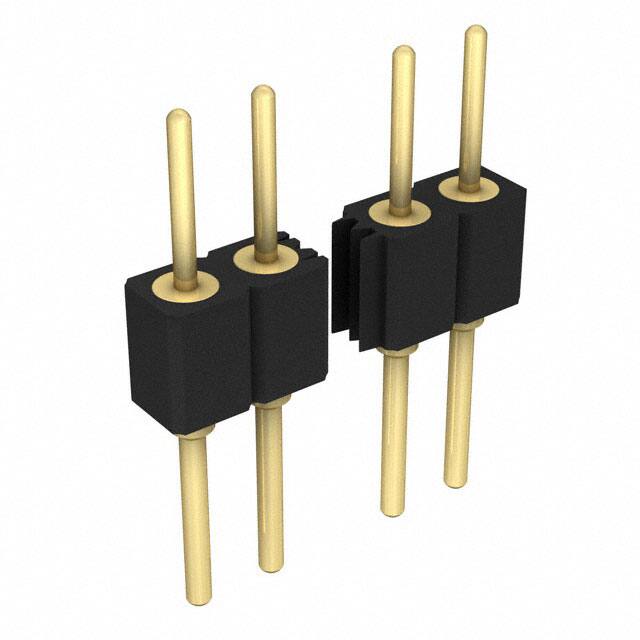

350-10-144-00-019101

Teknik Özellikler

Nominal Gerilim

150VDC

Durability

500 Cycles

Current Rating Amps

3A

Body Length Or Diameter

4.4 inch

Overall Contact Length

0.301 7.64mm

Parça Durumu

Active

Contact Materials

Brass

Style

Board to Board

Insulation Height

0.071 1.80mm

Çalışma Sıcaklığı

-55°C~125°C

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Montaj

Through Hole

Body Depth

0.075 inch

Seri

350

Contact Shape

Circular

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole

Reliability

COMMERCIAL

Pozisyon Sayısı

44

Contact Finish Thickness Post

10.0μin 0.25μm

Contact Type

Male Pin

Contact Lengthmating

0.118 3.00mm

Contact Finish Thickness Mating

10.0μin 0.25μm

JESD-609 Kodu

e4

Number Of Pcb Rows

1

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Sıra Sayısı

1

Contact Length Post

0.108 2.75mm

Fastening Type

Push-Pull

Connector Type

Header

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Insulation Color

Black

Terminal Adımı

2.54mm

Pcb Contact Pattern

RECTANGULAR

Number Of Conductors

ONE
