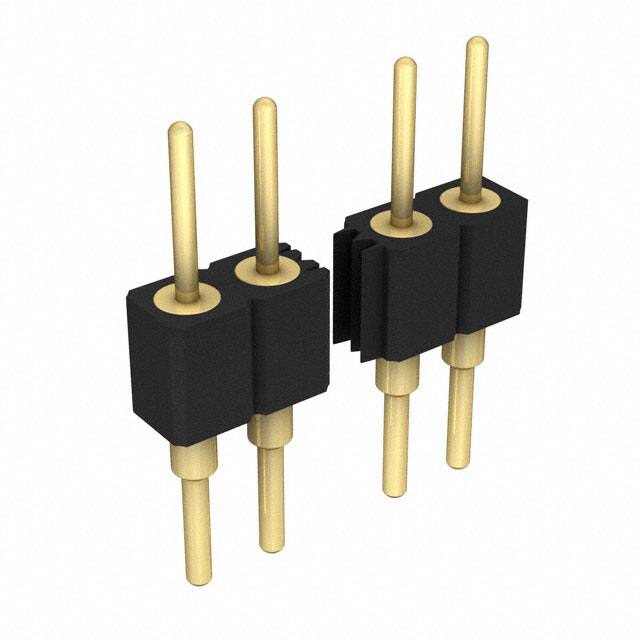

350-10-139-00-018101

Teknik Özellikler

Contact Lengthmating

0.169 4.30mm

HTS Kodu

8536.69.40.40

JESD-609 Kodu

e4

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Iec Conformance

NO

Number Of Pcb Rows

1

Mixed Contacts

NO

Mil Conformance

NO

Reference Standard

UL

Fastening Type

Push-Pull

Contact Length Post

0.124 3.15mm

Connector Type

Header

Sıra Sayısı

1

Number Of Positions Loaded

All

Terminal Adımı

2.54mm

Pitch Mating

0.100 2.54mm

Ul Flammability Code

94V-0

Yayın Yılı

2012

ECCN Kodu

EAR99

Nominal Gerilim

150VDC

Overall Contact Length

0.480 12.19mm

Style

Board to Board

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~125°C

Insulation Height

0.110 2.79mm

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole

Contact Type

Male Pin

Contact Finish Thickness Post

10.0μin 0.25μm

Pozisyon Sayısı

39

Contact Finish Thickness Mating

10.0μin 0.25μm

Insulation Color

Black

Pcb Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Shrouding

Unshrouded

Ambalaj

Bulk

Terminal

Solder
