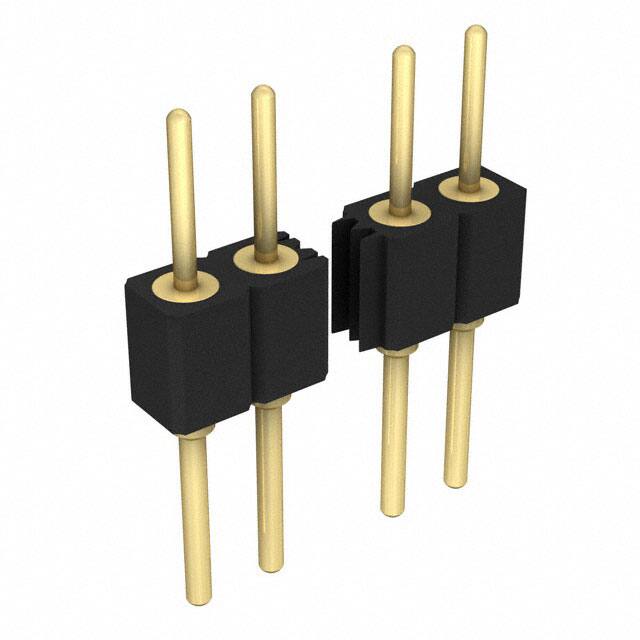

350-10-117-00-013101

Teknik Özellikler

Parça Durumu

Active

Contact Materials

Brass

Style

Board to Board

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Insulation Height

0.116 2.95mm

Çalışma Sıcaklığı

-55°C~125°C

Overall Contact Length

0.416 10.57mm

Nominal Gerilim

150VDC

Durability

500 Cycles

Current Rating Amps

3A

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Montaj Tipi

Through Hole

Seri

350

Contact Shape

Circular

Montaj

Through Hole

Contact Finish Mating

Gold

Contact Lengthmating

0.134 3.39mm

JESD-609 Kodu

e4

Contact Finish Thickness Mating

10.0μin 0.25μm

Pozisyon Sayısı

17

Contact Finish Thickness Post

10.0μin 0.25μm

Contact Type

Male Pin

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Black

Pitch Mating

0.100 2.54mm

Terminal Adımı

2.54mm

Yayın Yılı

2012

Ambalaj

Bulk

Terminal

Solder

Shrouding

Unshrouded

Number Of Conductors

ONE

Reference Standard

UL

Number Of Pcb Rows

1

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Number Of Positions Loaded

All

Sıra Sayısı

1

Fastening Type

Push-Pull
