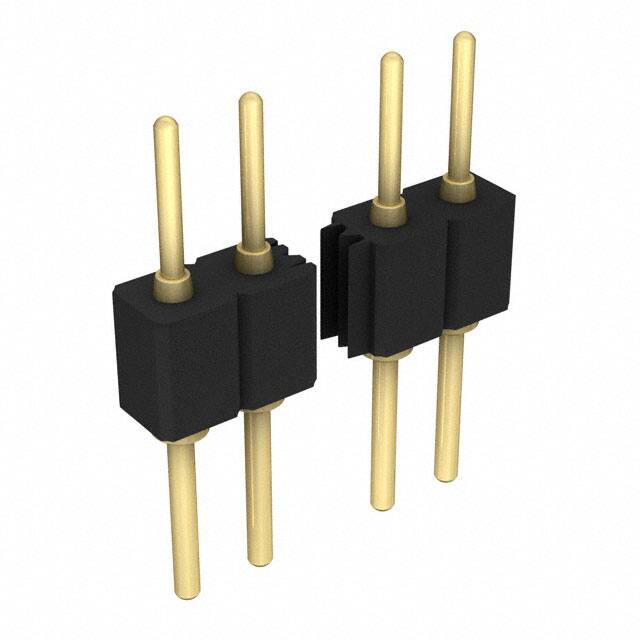

350-10-116-00-001101

Teknik Özellikler

JESD-609 Kodu

e4

Contact Lengthmating

0.156 3.96mm

HTS Kodu

8536.69.40.40

Max Current Rating

3A

Uzunluk

40.64mm

Yayın Yılı

2012

Housing Material

Polychlorinated

Pitch Mating

0.100 2.54mm

Ul Flammability Code

94V-0

Fastening Type

Push-Pull

Contact Length Post

0.164 4.17mm

Connector Type

Header

Sıra Sayısı

1

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Number Of Pcb Rows

1

Iec Conformance

NO

Mixed Contacts

NO

Mil Conformance

NO

Reference Standard

UL

Gender

Male

Çalışma Sıcaklığı

-55°C~125°C

Insulation Height

0.110 2.79mm

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Style

Board to Board

Parça Durumu

Active

ECCN Kodu

EAR99

Nominal Gerilim

150VDC

Overall Contact Length

0.477 12.12mm

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Contact Finish Thickness Mating

10.0μin 0.25μm

Depth

2.54mm

Contact Type

Male Pin

Contact Finish Thickness Post

10.0μin 0.25μm

Pozisyon Sayısı

16

Housing Color

Black
