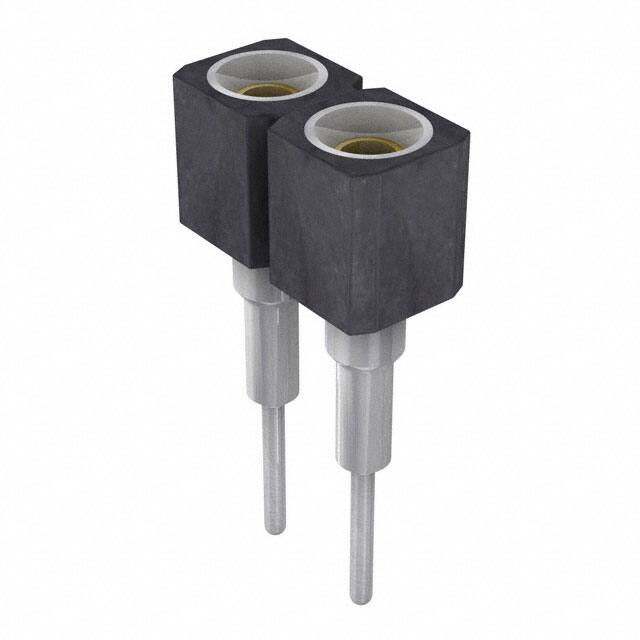

316-87-102-41-011101

Teknik Özellikler

Connector Type

Socket

Contact Length Post

0.126 3.20mm

Option

GENERAL PURPOSE

Mil Conformance

NO

Contact Finish Thickness Mating

Flash

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Mating

Gold

Parça Durumu

Active

Ambalaj

Bulk

Fastening Type

Push-Pull

Contact Materials

Beryllium Copper

JESD-609 Kodu

e3

Yayın Yılı

2012

Mixed Contacts

NO

Ul Flammability Code

94V-0

Contact Finish Post

Tin

RoHS Durumu

ROHS3 Compliant

Insulation Color

Black

Pitch Mating

0.100 2.54mm

Fabrika Tedarik Süresi

10 Weeks

Filter Feature

NO

Montaj Tipi

Through Hole

Montaj

Through Hole

Style

Board to Board

Iec Conformance

NO

Terminal

Solder

Pozisyon Sayısı

2

Kurşunsuz Kodu

yes

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Contact Type

Female Socket

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Circular

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Current Rating Amps

3A

Seri

316

Sıra Sayısı

1

Insulation Height

0.709 18.00mm

Din Conformance

NO
