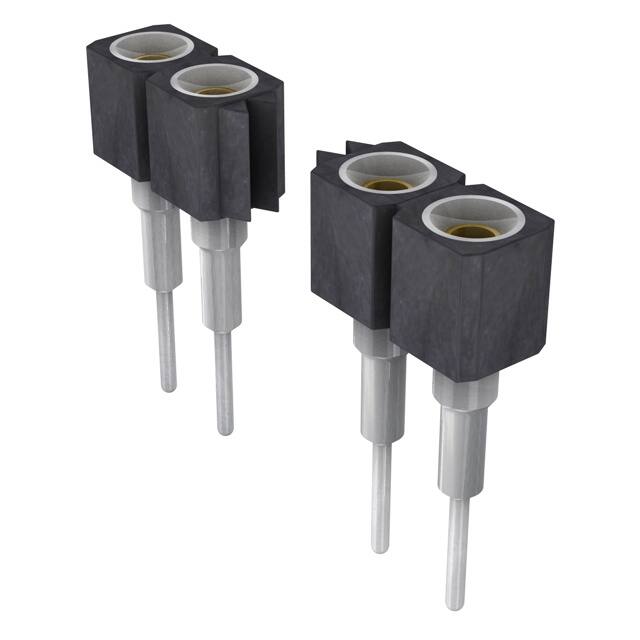

316-83-105-41-001101

Teknik Özellikler

Ambalaj

Bulk

Contact Materials

Beryllium Copper

Fastening Type

Push-Pull

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Mixed Contacts

NO

Yayın Yılı

2012

Insulation Color

Black

RoHS Durumu

ROHS3 Compliant

Contact Finish Post

Tin

Connector Type

Socket

Contact Length Post

0.126 3.20mm

Option

GENERAL PURPOSE

Contact Finish Thickness Mating

29.5μin 0.75μm

Mil Conformance

NO

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Contact Shape

Circular

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Female Socket

Current Rating Amps

3A

Seri

316

Sıra Sayısı

1

Insulation Height

0.591 15.00mm

Din Conformance

NO

Filter Feature

NO

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Pitch Mating

0.100 2.54mm

Montaj

Through Hole

Style

Board to Board

Iec Conformance

NO

Terminal

Solder

Kurşunsuz Kodu

yes

Pozisyon Sayısı

5

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All
