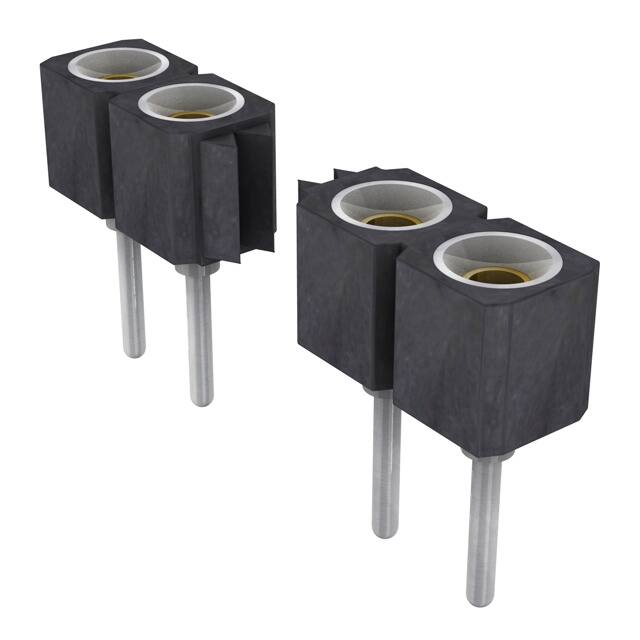

311-83-164-41-001101

Teknik Özellikler

Number Of Pcb Rows

1

Insulation Color

Black

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Thickness Mating

29.5μin 0.75μm

Connector Type

Socket

Current Rating Amps

3A

Contact Length Post

0.165 4.19mm

Reliability

COMMERCIAL

Seri

311

Sıra Sayısı

1

Body Length Or Diameter

6.4 inch

Plating Thickness

30μin

Material Flammability Rating

UL94 V-0

Number Of Conductors

ONE

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Style

Board to Board

Contact Finish Mating

Gold

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Durability

500 Cycles

Contact Finish Post

Tin

Contact Type

Female Socket

Contact Shape

Circular

RoHS Durumu

ROHS3 Compliant

ECCN Kodu

EAR99

Reference Standard

UL

Çalışma Sıcaklığı

-55°C~125°C

Polarization Key

POLARIZED HOUSING

Pcb Contact Pattern

RECTANGULAR

HTS Kodu

8536.69.40.40

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Adımı

2.54mm

Contact Materials

Beryllium Copper

Insulation Height

0.161 4.10mm

Terminal

Solder

Number Of Positions Loaded

All

Pozisyon Sayısı

64

Parça Durumu

Active

Yayın Yılı

2012
