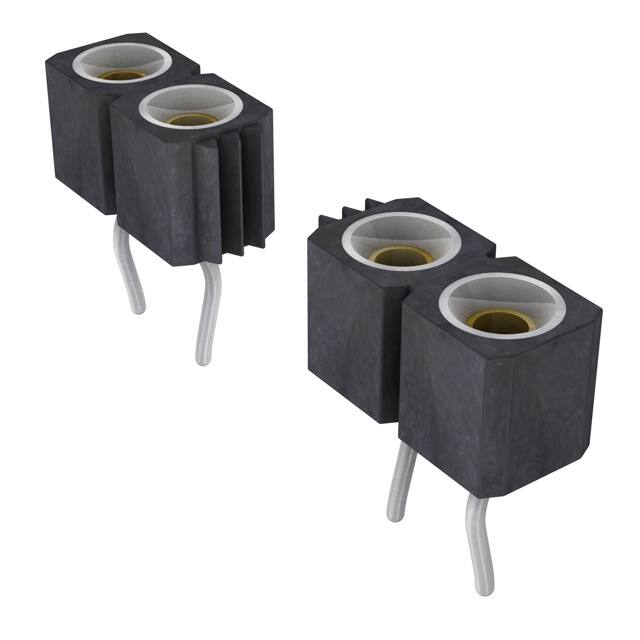

310-87-132-01-666101

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Pitch Mating

0.100 2.54mm

Yayın Yılı

2012

Contact Resistance

10mOhm

Kurşunsuz Kodu

yes

Mil Conformance

NO

Contact Shape

Circular

Iec Conformance

NO

Durability

500 Cycles

Mixed Contacts

NO

Filter Feature

NO

Style

Board to Board

HTS Kodu

8536.69.40.40

Housing Material

Polychlorinated

Contact Materials

Beryllium Copper

Radyasyon Dayanımı

No

Housing Color

Black

Din Conformance

NO

Contact Finish Thickness Mating

Flash

Rated Current Signal

3A

Ul Flammability Code

94V-0

RoHS Durumu

ROHS3 Compliant

Max Voltage Rating Dc

150V

Reference Standard

UL

Option

GENERAL PURPOSE

Contact Finish Mating

Gold

Seri

310

Contact Finish Post

Tin

Max Voltage Rating Ac

100V

Connector Type

Socket

Fabrika Tedarik Süresi

10 Weeks

Pcb Contact Pattern

RECTANGULAR

Depth

2.54mm

Number Of Conductors

ONE

Insulation Height

0.165 4.20mm

Contact Type

Female Socket

Number Of Pcb Rows

1

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)
