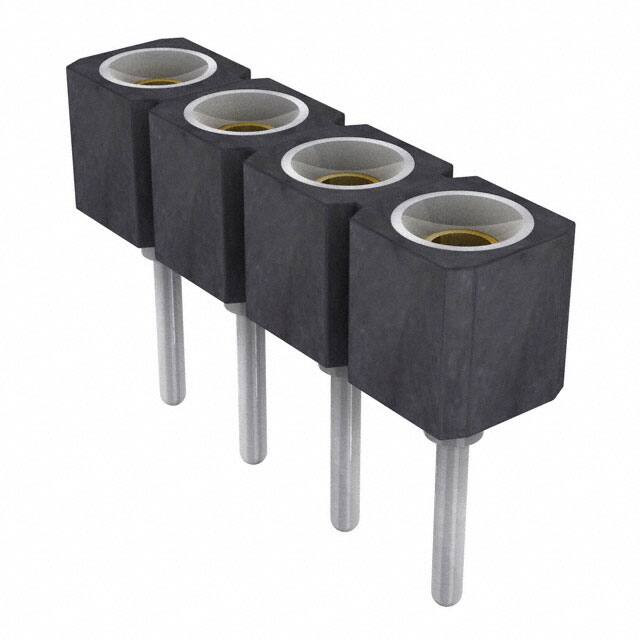

310-87-104-41-001101

Teknik Özellikler

Option

GENERAL PURPOSE

RoHS Durumu

ROHS3 Compliant

Reference Standard

UL

Seri

310

Contact Finish Mating

Gold

Contact Finish Thickness Mating

Flash

Din Conformance

NO

Housing Color

Black

Rated Current Signal

3A

Durability

500 Cycles

Mixed Contacts

NO

Mil Conformance

NO

Contact Shape

Circular

Iec Conformance

NO

Housing Material

Polychlorinated

Contact Materials

Beryllium Copper

Filter Feature

NO

Style

Board to Board

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Contact Resistance

10mOhm

Kurşunsuz Kodu

yes

Pitch Mating

0.100 2.54mm

Yayın Yılı

2012

Sıra Sayısı

1

Gender

Female

Pozisyon Sayısı

4

Montaj

Through Hole

Uzunluk

10.16mm

Orientation

Straight

Montaj Tipi

Through Hole

Parça Durumu

Active

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~125°C

JESD-609 Kodu

e3

Max Current Rating

3A

Reliability

COMMERCIAL

Contact Type

Female Socket

Number Of Pcb Rows

1
