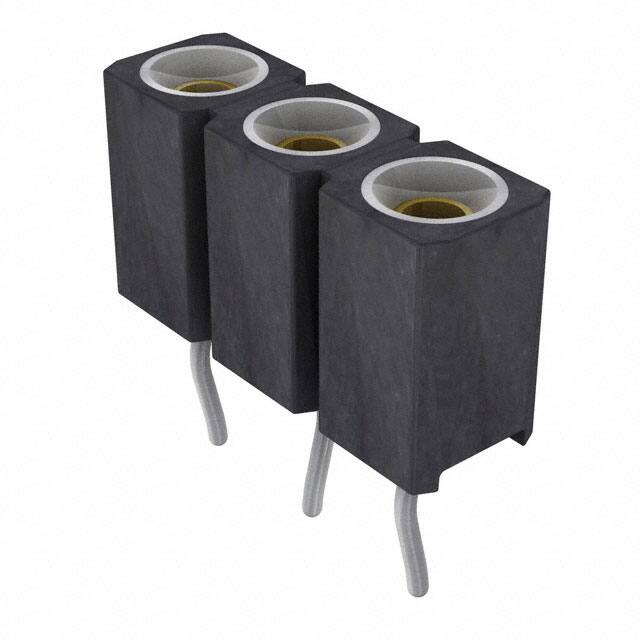

310-87-103-01-754101

Teknik Özellikler

Sıra Sayısı

1

Gender

Female

Pozisyon Sayısı

3

Uzunluk

7.62mm

Montaj

Through Hole

Montaj Tipi

Through Hole

Max Voltage Rating Dc

150V

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Orientation

Straight

Reference Standard

UL

Seri

310

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

ECCN Kodu

EAR99

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Contact Finish Thickness Mating

Flash

Çalışma Sıcaklığı

-55°C~125°C

Housing Color

Black

Rated Current Signal

3A

Reliability

COMMERCIAL

Max Current Rating

3A

Durability

500 Cycles

Contact Type

Female Socket

Kılıf / Paket

SIP

Contact Shape

Circular

Number Of Pcb Rows

1

Terminal

Press-Fit, Solder

Housing Material

Polychlorinated

Contact Materials

Beryllium Copper

Contact Length Post

0.122 3.10mm

Style

Board to Board

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Depth

2.54mm

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Contact Finish Post

Tin

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Socket
