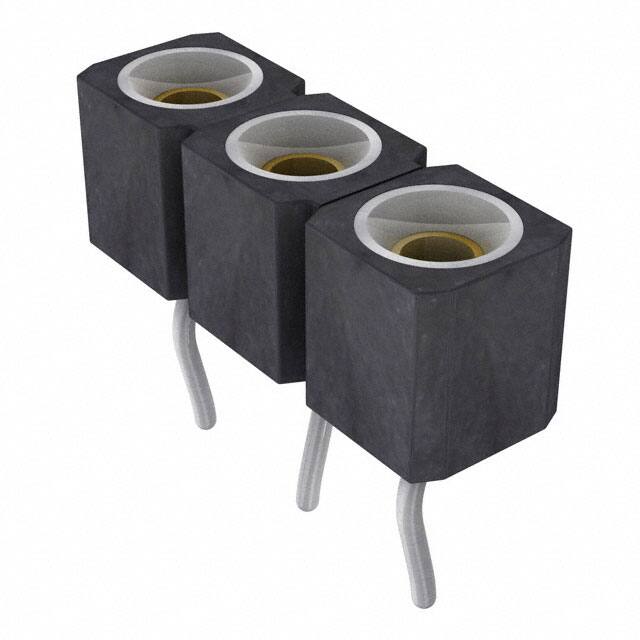

310-83-103-01-666101

Teknik Özellikler

Seri

310

ECCN Kodu

EAR99

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Sıra Sayısı

1

Gender

Female

Pozisyon Sayısı

3

Plating Thickness

29μin

Montaj

Through Hole

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Montaj Tipi

Through Hole

Reference Standard

UL

JESD-609 Kodu

e3

Reliability

COMMERCIAL

Contact Finish Thickness Mating

29.5μin 0.75μm

Çalışma Sıcaklığı

-55°C~125°C

Terminal

Press-Fit, Solder

Contact Materials

Beryllium Copper

Contact Length Post

0.122 3.10mm

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board

Insulation Color

Black

Durability

500 Cycles

Contact Type

Female Socket

Contact Shape

Circular

Number Of Pcb Rows

1

Number Of Conductors

ONE

Insulation Height

0.165 4.20mm

Current Rating Amps

3A

Terminal Adımı

2.54mm

Pitch Mating

0.100 2.54mm

Yayın Yılı

2012

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Contact Finish Post

Tin

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Socket
