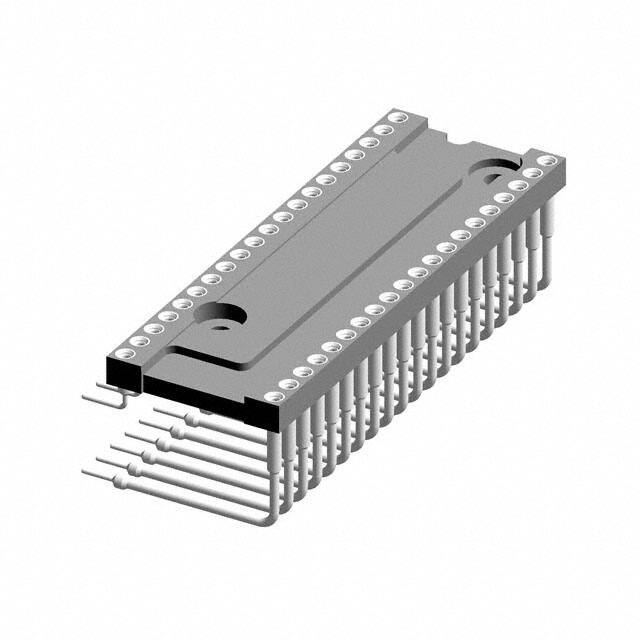

299-87-640-10-002101

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Kurşunsuz Kodu

yes

Sıra Sayısı

2

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Terminal

Solder

Contact Style

RND PIN-SKT

Termination Post Length

0.128 3.24mm

Orientation

Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Contact Pitch

0.1 inch

Pitch Post

0.100 2.54mm

Contact Finish Post

Tin

Seri

299

Insulation Resistance

10000000000Ohm

Number Of Positions Or Pins Grid

40 (2 x 20)

Contact Material Mating

Beryllium Copper

Pcb Contact Pattern

RECTANGULAR

Additional Feature

94V-0

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pitch Mating

0.100 2.54mm

Akım Değeri

1A

Lead Length

3.2512mm

Contact Material Post

Brass

Contact Resistance

10mOhm

Ambalaj

Bulk

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Number Of Contacts

40

Radyasyon Dayanımı

No

Montaj Tipi

Through Hole, Right Angle, Horizontal

Tip

DIP, 0.6 (15.24mm) Row Spacing

ECCN Kodu

EAR99

Contact Finish Thickness Mating

Flash

Montaj

Horizontal, Through Hole

JESD-609 Kodu

e3

Yayın Yılı

2012

Özellikler

Closed Frame

Flammability Rating

UL94 V-0
