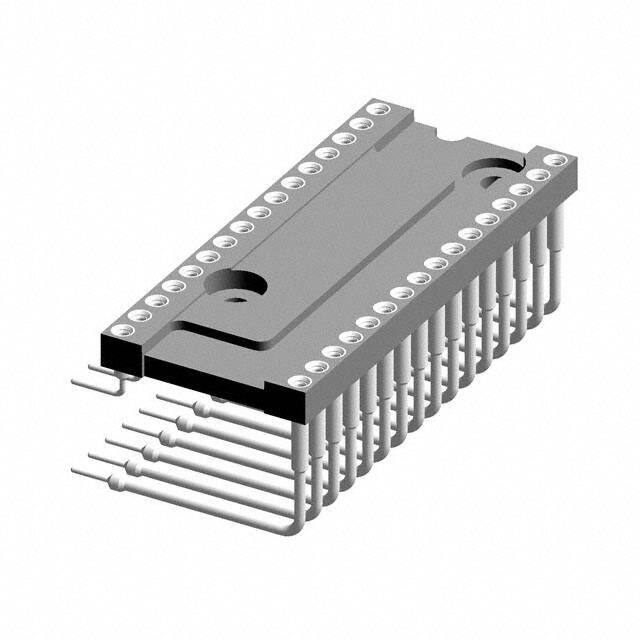

299-87-632-10-002101

Teknik Özellikler

Contact Material Post

Brass

Pin Sayısı

32

Contact Resistance

10mOhm

Ambalaj

Bulk

Contact Finish Mating

Gold

RoHS Durumu

ROHS3 Compliant

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Akım Değeri

1A

Pitch Mating

0.100 2.54mm

Lead Length

3.2512mm

Number Of Contacts

32

Montaj Tipi

Through Hole, Right Angle, Horizontal

Body Length Or Diameter

1.598 inch

ECCN Kodu

EAR99

Tip

DIP, 0.6 (15.24mm) Row Spacing

JESD-609 Kodu

e3

Yayın Yılı

2012

Flammability Rating

UL94 V-0

Özellikler

Closed Frame

Contact Finish Thickness Mating

Flash

Montaj

Horizontal, Through Hole

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~125°C

Dielectric Withstanding Voltage

1400VAC V

Fabrika Tedarik Süresi

10 Weeks

Terminal

Solder

HTS Kodu

8536.69.40.40

Contact Style

RND PIN-SKT

Termination Post Length

0.128 3.24mm

Terminal Adımı

2.54mm

Material Flammability Rating

UL94 V-0

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Contact Pitch

0.1 inch

Seri

299

Number Of Positions Or Pins Grid

32 (2 x 16)

Insulation Resistance

10000000000Ohm

Pitch Post

0.100 2.54mm

Contact Finish Post

Tin

Additional Feature

94V-0
