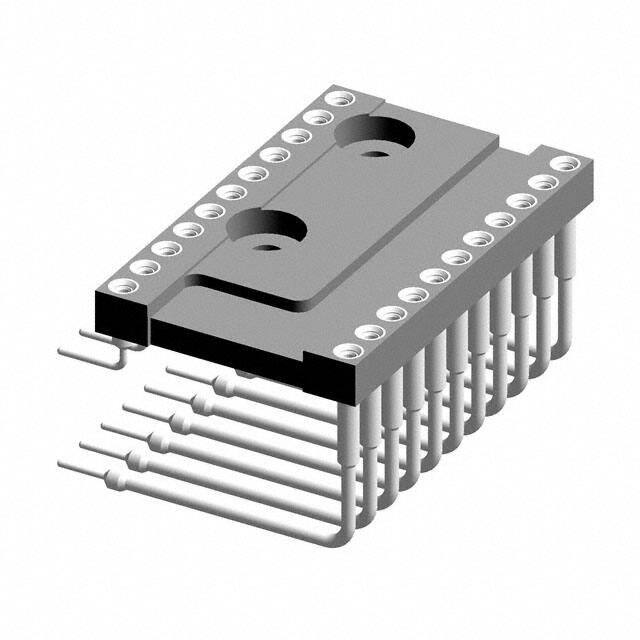

299-87-622-10-002101

Teknik Özellikler

Mating Contact Pitch

0.1 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Adımı

2.54mm

Termination Post Length

0.128 3.24mm

Contact Style

RND PIN-SKT

HTS Kodu

8536.69.40.40

Terminal

Solder

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~125°C

Dielectric Withstanding Voltage

1400VAC V

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Additional Feature

94V-0

Pcb Contact Pattern

RECTANGULAR

Contact Material Mating

Beryllium Copper

Number Of Positions Or Pins Grid

22 (2 x 11)

Insulation Resistance

10000000000Ohm

Seri

299

Contact Finish Post

Tin

Pitch Post

0.100 2.54mm

Body Length Or Diameter

1.09 inch

Montaj Tipi

Through Hole, Right Angle, Horizontal

Number Of Contacts

22

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Ambalaj

Bulk

Contact Resistance

10mOhm

Contact Material Post

Brass

Pin Sayısı

22

Lead Length

3.2512mm

Akım Değeri

1A

Pitch Mating

0.100 2.54mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Flammability Rating

UL94 V-0

Özellikler

Closed Frame

JESD-609 Kodu

e3

Yayın Yılı

2012

Montaj

Horizontal, Through Hole

Contact Finish Thickness Mating

Flash
