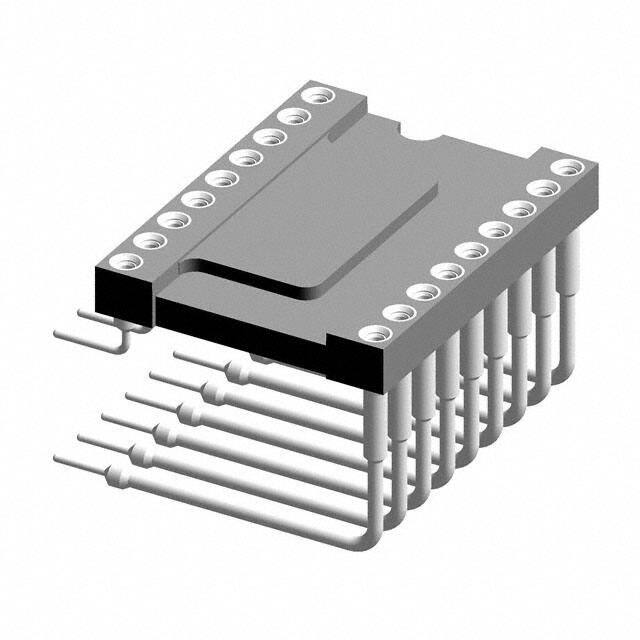

299-87-618-10-002101

Teknik Özellikler

Ambalaj

Tube

Gender

Female

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Current Rating Amps

1A

Contact Material Post

Brass

Contact Resistance

10mOhm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole, Right Angle, Horizontal

Body Length Or Diameter

0.897 inch

Number Of Contacts

18

Radyasyon Dayanımı

No

ECCN Kodu

EAR99

Tip

DIP, 0.6 (15.24mm) Row Spacing

Özellikler

Closed Frame

JESD-609 Kodu

e3

Yayın Yılı

2012

Montaj

Through Hole

Contact Finish Thickness Mating

Flash

Contact Style

RND PIN-SKT

Termination Post Length

0.128 3.24mm

Fabrika Tedarik Süresi

10 Weeks

Dielectric Withstanding Voltage

1400VAC V

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

HTS Kodu

8536.69.40.40

Terminal

Solder

Kurşunsuz Kodu

yes

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Contact Pitch

0.1 inch

Orientation

Right Angle

Seri

299

Insulation Resistance

10000000000Ohm

Number Of Positions Or Pins Grid

18 (2 x 9)

Pitch Post

0.100 2.54mm

Contact Finish Post

Tin

Additional Feature

94V-0
