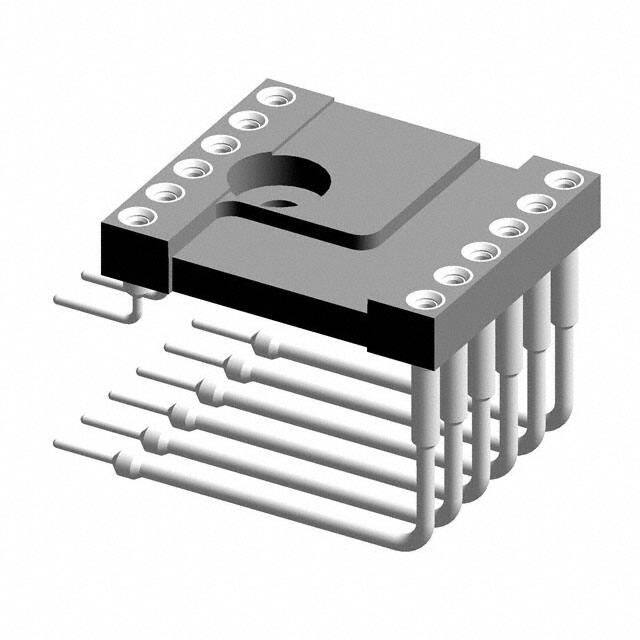

299-87-612-10-002101

Teknik Özellikler

Insulation Resistance

10000000000Ohm

Number Of Positions Or Pins Grid

12 (2 x 6)

Seri

299

Contact Finish Post

Tin

Pitch Post

0.100 2.54mm

Additional Feature

94V-0

Pcb Contact Pattern

RECTANGULAR

Contact Material Mating

Beryllium Copper

Terminal Adımı

2.54mm

Termination Post Length

0.128 3.24mm

Contact Style

RND PIN-SKT

HTS Kodu

8536.69.40.40

Terminal

Solder

Fabrika Tedarik Süresi

10 Weeks

Dielectric Withstanding Voltage

1400VAC V

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Mating Contact Pitch

0.1 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Tip

DIP, 0.6 (15.24mm) Row Spacing

Özellikler

Closed Frame

Flammability Rating

UL94 V-0

Yayın Yılı

2012

JESD-609 Kodu

e3

Montaj

Horizontal, Through Hole

Contact Finish Thickness Mating

Flash

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Ambalaj

Bulk

Contact Resistance

10mOhm

Pin Sayısı

12

Contact Material Post

Brass

Lead Length

3.2512mm

Akım Değeri

1A

Pitch Mating

0.100 2.54mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Body Length Or Diameter

0.598 inch
