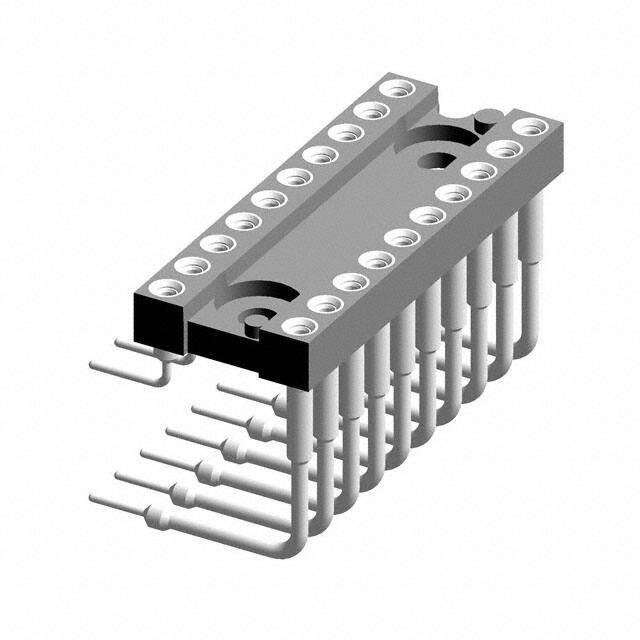

299-87-320-10-001101

Teknik Özellikler

Additional Feature

94V-0

Contact Material Mating

Beryllium Copper

Depth

10.1mm

Insulation Resistance

10GOhm

Contact Materials

Copper

Number Of Positions Or Pins Grid

20 (2 x 10)

Seri

299

Contact Finish Post

Tin

Insulation Materials

Polychlorinated

Pitch Post

0.100 2.54mm

Row Spacing

7.62 mm

Voltage Rated Dc

150V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Right Angle

Uzunluk

25.3mm

Termination Post Length

0.128 3.24mm

HTS Kodu

8536.69.40.40

Terminal

Solder

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Kurşunsuz Kodu

yes

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

Özellikler

Closed Frame

JESD-609 Kodu

e3

Yayın Yılı

2012

Voltage Rated Ac

100V

Contact Finish Thickness Mating

Flash

ECCN Kodu

EAR99

Kurşunsuz

Lead Free

Tip

DIP, 0.3 (7.62mm) Row Spacing

Montaj Tipi

Through Hole, Right Angle, Horizontal

Radyasyon Dayanımı

No

Number Of Contacts

20

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Ambalaj

Tube

Gender

Female

Contact Resistance

10mOhm
