Adet bazlı fiyat
- 1+ adet$4.09
- 10+ adet$3.86
- 100+ adet$3.64
- 500+ adet$3.43
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

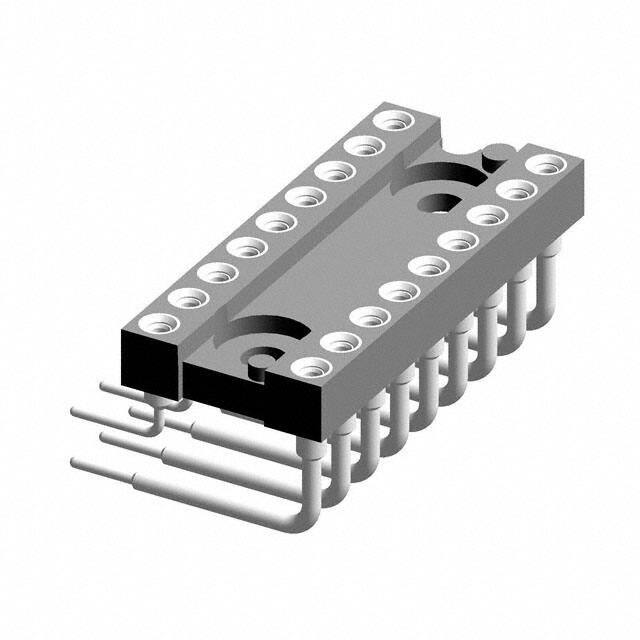

Teknik Özellikler
- Montaj Tipi
- Through Hole, Right Angle, Horizontal
- Number Of Contacts
- 18
- Ambalaj
- Bulk
- Contact Finish Mating
- Gold
- RoHS Durumu
- ROHS3 Compliant
- Pin Sayısı
- 18
- Contact Material Post
- Brass
- Contact Resistance
- 10mOhm
- Lead Length
- 3.2512mm
- Housing Material
- Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Akım Değeri
- 1A
- Pitch Mating
- 0.100 2.54mm
- Özellikler
- Closed Frame
- Flammability Rating
- UL94 V-0
- Yayın Yılı
- 2012
- JESD-609 Kodu
- e3
- Montaj
- Horizontal, Through Hole
- Contact Finish Thickness Mating
- Flash
- ECCN Kodu
- EAR99
- Tip
- DIP, 0.3 (7.62mm) Row Spacing
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Termination Post Length
- 0.128 3.24mm
- Fabrika Tedarik Süresi
- 10 Weeks
- Parça Durumu
- Active
- Çalışma Sıcaklığı
- -55°C~125°C
- HTS Kodu
- 8536.69.40.40
- Terminal
- Solder
- Kurşunsuz Kodu
- yes
- Material Flammability Rating
- UL94 V-0
- Additional Feature
- 94V-0
- Contact Material Mating
- Beryllium Copper
- Seri
- 299
- Number Of Positions Or Pins Grid
- 18 (2 x 9)
- Pitch Post
- 0.100 2.54mm
- Contact Finish Post
- Tin
