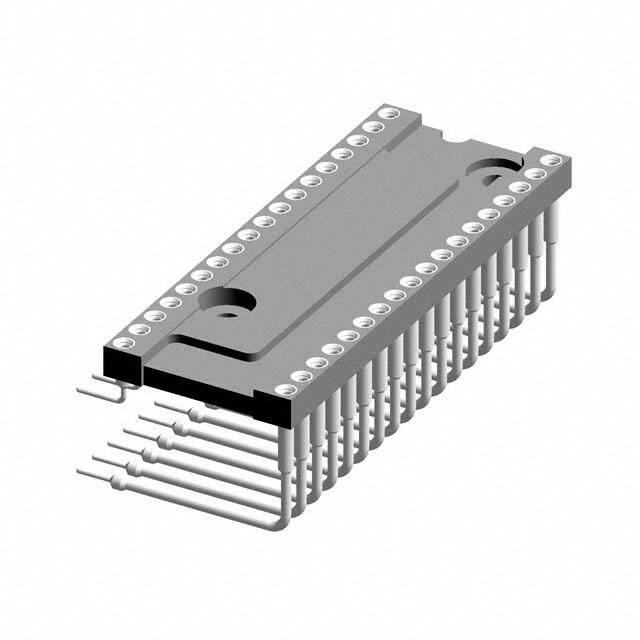

299-83-636-10-002101

Teknik Özellikler

Lead Length

3.2512mm

Akım Değeri

1A

Pitch Mating

0.100 2.54mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Contact Finish Mating

Gold

RoHS Durumu

ROHS3 Compliant

Ambalaj

Bulk

Contact Resistance

10mOhm

Contact Material Post

Brass

Pin Sayısı

36

Body Length Or Diameter

1.8 inch

Montaj Tipi

Through Hole, Right Angle, Horizontal

Number Of Contacts

36

Tip

DIP, 0.6 (15.24mm) Row Spacing

ECCN Kodu

EAR99

Montaj

Horizontal, Through Hole

Contact Finish Thickness Mating

29.5μin 0.75μm

Özellikler

Closed Frame

Flammability Rating

UL94 V-0

Yayın Yılı

2012

JESD-609 Kodu

e3

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Terminal Adımı

2.54mm

Termination Post Length

0.128 3.24mm

Contact Style

RND PIN-SKT

Terminal

Solder

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~125°C

Dielectric Withstanding Voltage

1400VAC V

Fabrika Tedarik Süresi

10 Weeks

Mating Contact Pitch

0.1 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Post

Tin

Pitch Post

0.100 2.54mm

Number Of Positions Or Pins Grid

36 (2 x 18)

Insulation Resistance

10000000000Ohm

Seri

299

Pcb Contact Pattern

RECTANGULAR

Contact Material Mating

Beryllium Copper
