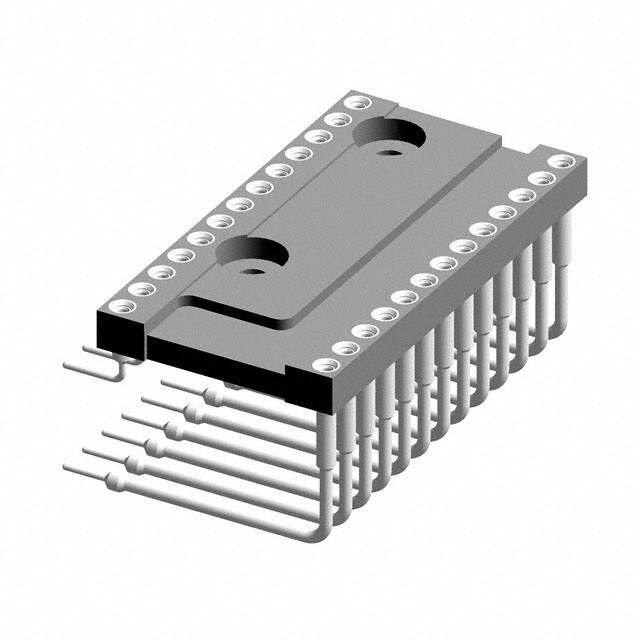

299-83-626-10-002101

Teknik Özellikler

Additional Feature

94V-0

Pcb Contact Pattern

RECTANGULAR

Contact Material Mating

Beryllium Copper

Seri

299

Number Of Positions Or Pins Grid

26 (2 x 13)

Insulation Resistance

10000000000Ohm

Pitch Post

0.100 2.54mm

Contact Finish Post

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Contact Pitch

0.1 inch

Contact Style

RND PIN-SKT

Termination Post Length

0.128 3.24mm

Terminal Adımı

2.54mm

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~125°C

Dielectric Withstanding Voltage

1400VAC V

Fabrika Tedarik Süresi

10 Weeks

Terminal

Solder

HTS Kodu

8536.69.40.40

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Flammability Rating

UL94 V-0

Özellikler

Closed Frame

JESD-609 Kodu

e3

Yayın Yılı

2012

Montaj

Horizontal, Through Hole

Contact Finish Thickness Mating

29.5μin 0.75μm

ECCN Kodu

EAR99

Tip

DIP, 0.6 (15.24mm) Row Spacing

Montaj Tipi

Through Hole, Right Angle, Horizontal

Body Length Or Diameter

1.3 inch

Number Of Contacts

26

Ambalaj

Bulk

Contact Finish Mating

Gold

RoHS Durumu

ROHS3 Compliant

Contact Material Post

Brass

Pin Sayısı

26

Contact Resistance

10mOhm

Lead Length

3.2512mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
