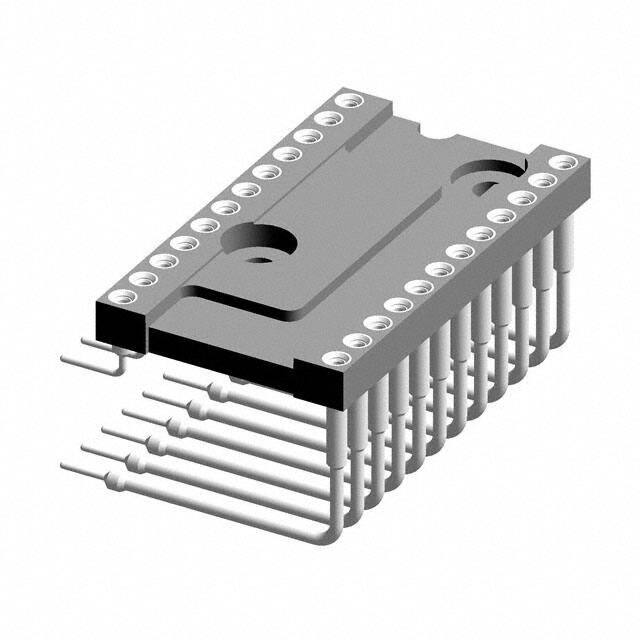

299-83-624-10-002101

Teknik Özellikler

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Ambalaj

Bulk

Contact Resistance

10mOhm

Contact Material Post

Brass

Lead Length

3.2512mm

Pitch Mating

0.100 2.54mm

Akım Değeri

1A

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Body Length Or Diameter

1.196 inch

Montaj Tipi

Through Hole, Right Angle, Horizontal

Radyasyon Dayanımı

No

Number Of Contacts

24

ECCN Kodu

EAR99

Tip

DIP, 0.6 (15.24mm) Row Spacing

Flammability Rating

UL94 V-0

Özellikler

Closed Frame

Yayın Yılı

2012

JESD-609 Kodu

e3

Montaj

Horizontal, Through Hole

Contact Finish Thickness Mating

29.5μin 0.75μm

Termination Post Length

0.128 3.24mm

Contact Style

RND PIN-SKT

HTS Kodu

8536.69.40.40

Terminal

Solder

Fabrika Tedarik Süresi

10 Weeks

Dielectric Withstanding Voltage

1400VAC V

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Kurşunsuz Kodu

yes

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

Mating Contact Pitch

0.1 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Right Angle

Insulation Resistance

10000000000Ohm

Number Of Positions Or Pins Grid

24 (2 x 12)

Seri

299

Contact Finish Post

Tin

Pitch Post

0.100 2.54mm
