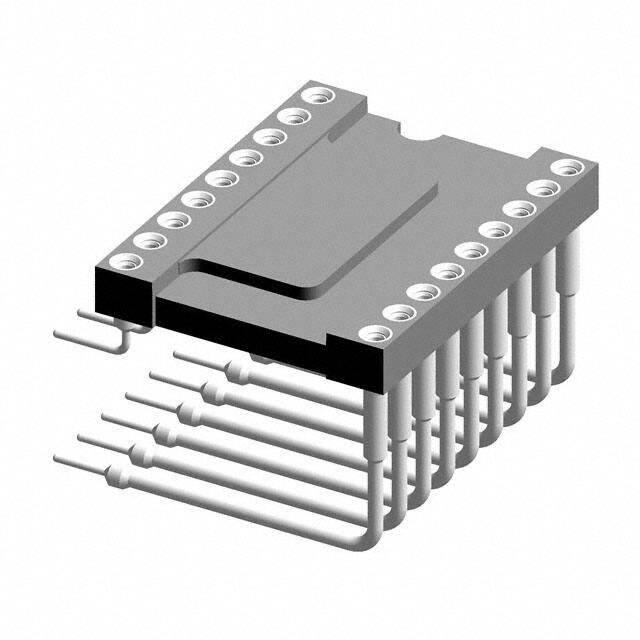

299-83-618-10-002101

Teknik Özellikler

Tip

DIP, 0.6 (15.24mm) Row Spacing

ECCN Kodu

EAR99

Montaj

Horizontal, Through Hole

Contact Finish Thickness Mating

29.5μin 0.75μm

Flammability Rating

UL94 V-0

Özellikler

Closed Frame

JESD-609 Kodu

e3

Yayın Yılı

2012

Lead Length

3.2512mm

Housing Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Akım Değeri

1A

Pitch Mating

0.100 2.54mm

Ambalaj

Bulk

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Contact Material Post

Brass

Contact Resistance

10mOhm

Montaj Tipi

Through Hole, Right Angle, Horizontal

Body Length Or Diameter

0.897 inch

Number Of Contacts

18

Radyasyon Dayanımı

No

Pitch Post

0.100 2.54mm

Contact Finish Post

Tin

Seri

299

Number Of Positions Or Pins Grid

18 (2 x 9)

Insulation Resistance

10000000000Ohm

Pcb Contact Pattern

RECTANGULAR

Contact Material Mating

Beryllium Copper

Additional Feature

94V-0

Kurşunsuz Kodu

yes

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

Contact Style

RND PIN-SKT

Termination Post Length

0.128 3.24mm

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~125°C

Dielectric Withstanding Voltage

1400VAC V

Fabrika Tedarik Süresi

10 Weeks

HTS Kodu

8536.69.40.40

Terminal

Solder
